Same model may have multiple batches, images only for reference.

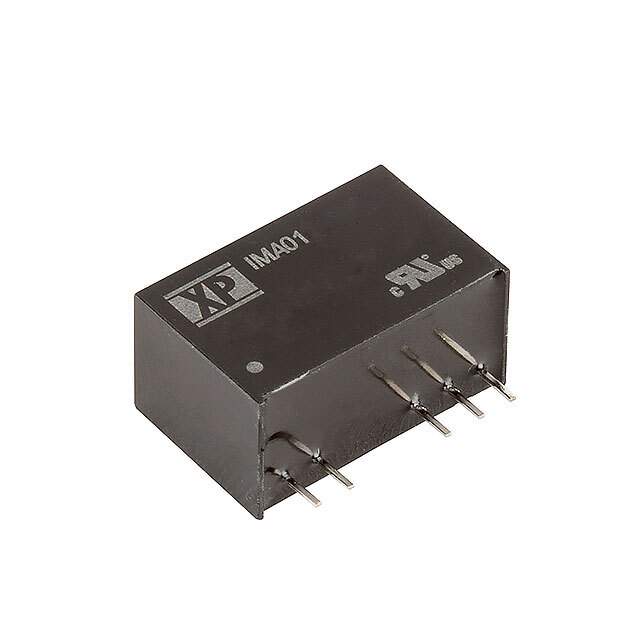

IMA0105S05 Real Image
Same model may have multiple batches, images only for reference.

IMA0105S05

Part No IMA0105S05
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
IMA0105S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IMA01 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 4 kV
Applications Medical
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.36" W x 0.42" H (19.5mm x 9.2mm x 10.6mm)
Base Product Number IMA0105
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337453-IMA0105S05
Ultra Librarian 3D Model Ultra Librarian IMA0105S05 CAD Model

Description

The XP Power IMA0105S05 is an isolated module type DC-DC converter used in medical applications.

  • Power (Watts): 1 W
  • Features: SCP
  • Size / Dimension: 0.77" L x 0.36" W x 0.42" H (19.5mm x 9.2mm x 10.6mm)
  • Mounting Type: Through Hole
  • Number of Outputs: 1
  • Voltage - Output 1: 5V
  • Voltage - Input: 4.5V ~ 5.5V
  • Voltage - Isolation: 4 kV
  • Efficiency: 77%
  • Operating Temperature: -40°C ~ 75°C
  • Package / Case: 7-SIP Module, 4 Leads
