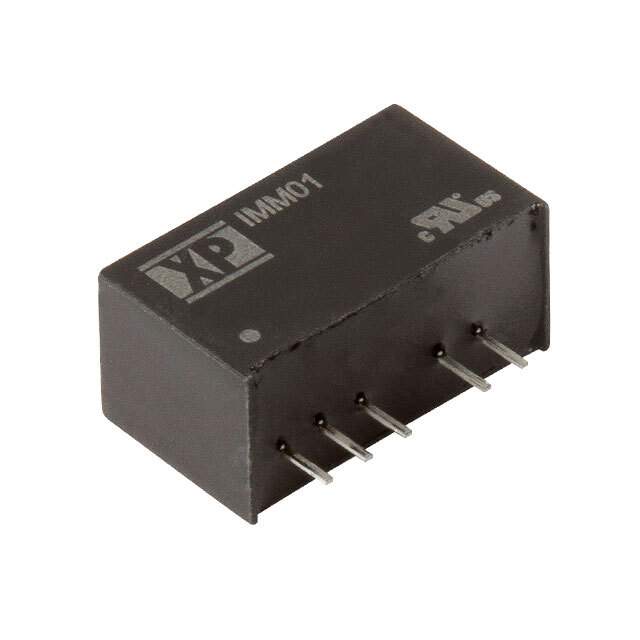

Same model may have multiple batches, images only for reference.

IMM0105S05

Name: IMM0105S05
Brand: XP Power
SKU: 1348803
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IMM0105S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 9V Input
Datasheet	IMM0105S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IMM01 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, SCP
Temperature Range - Operating	-20°C ~ 100°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.36" W x 0.44" H (19.5mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	IMM0105
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1348803-IMM0105S05
Ultra Librarian 3D Model	Ultra Librarian IMM0105S05 CAD Model

Alternative Products

Description

The XP Power IMM0105S05 is a high-quality power supply board mount DC DC converter.

Power: 1W
Features: Remote On/Off, SCP
Application: Medical
Voltage Isolation: 1.5kV
Efficiency: 81%
Package: 7-SIP Module
Leads: 5
Operating Temperature: -20°C to 100°C
Win Source Part Number: 1348803-IMM0105S05
Standard Package: 20
