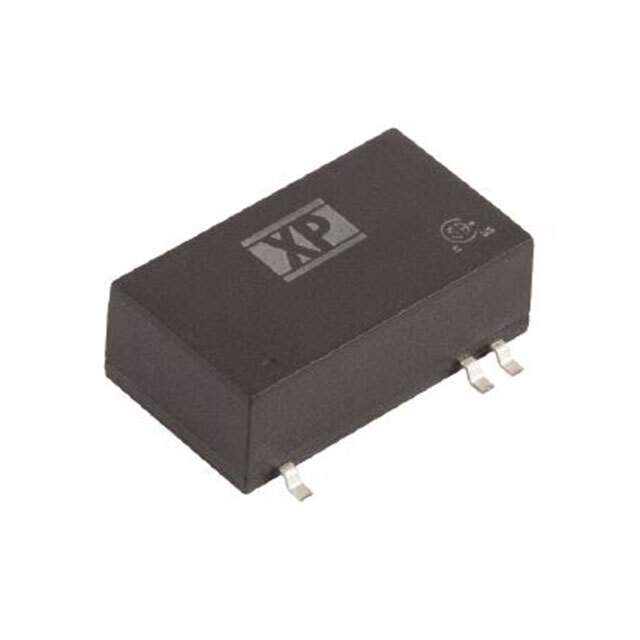

Same model may have multiple batches, images only for reference.

ISC0348S15-TR

Name: ISC0348S15-TR
Brand: XP Power
SKU: 1341432
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ISC0348S15-TR
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 3W / Isolated Module DC DC Converter 1 Output 15V 200mA 18V - 75V Input
Datasheet	ISC0348S15-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	ISC03 (3W)
Package	Tape & Reel (TR) Cut Tape (CT) ®Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Current - Output (Max)	200mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	80%
Mounting Type	Surface Mount
Package / Case	16-SMD Module, 7 Leads
Size / Dimension	0.94" L x 0.54" W x 0.32" H (24.0mm x 13.7mm x 8.3mm)
Control Features	Enable, Active High
Approval Agency	CE, UKCA, UL
Standard Number	60950-1; 62368-1
Base Product Number	ISC0348
Standard Package	250
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1341432-ISC0348S15-TR
Ultra Librarian 3D Model	Ultra Librarian ISC0348S15-TR CAD Model

Alternative Products

Description

The ISC03 (3W) series isolated module from XP Power comes with remote on/off, OCP, SCP, and UVLO features.

Power Rating: 3 W
Voltage Isolation: 1.5 kV
Size: 0.94" L x 0.54" W x 0.32" H (24.0mm x 13.7mm x 8.3mm)
Application: ITE (Commercial)
Maximum Output Current: 200mA
Operating Temperature: -40°C ~ 100°C (With Derating)
Approvals: CE, UKCA, and UL
Standard Number: 60950-1; 62368-1
