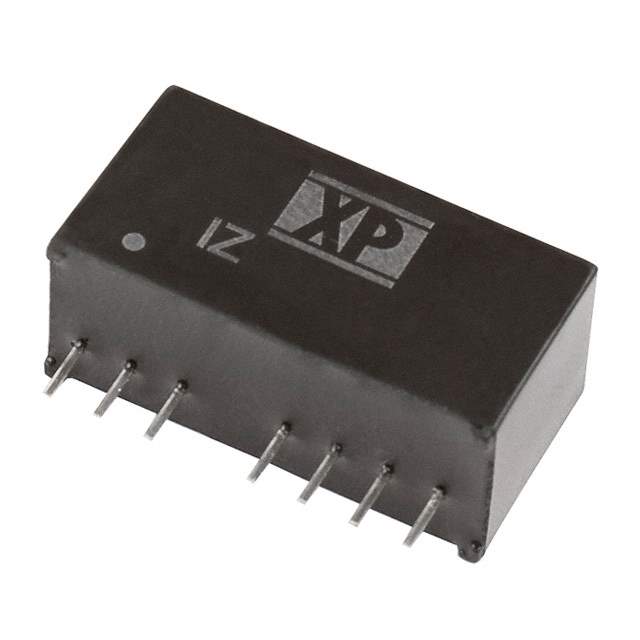

The IZ2415S is an isolated DC-DC converter module manufactured by XP Power. It is designed to provide a regulated 15V output voltage from a 24V nominal input. This converter is characterized by its compact size, high efficiency, and reliable performance, making it suitable for a wide range of industrial and instrumentation applications.

Applications

• Isolated power supplies for industrial equipment
• Instrumentation and measurement devices
• Isolated communication interfaces
• Medical equipment (with appropriate isolation considerations)
• Remote sensor power

Features

• Input Voltage: 24 VDC nominal
• Output Voltage: 15 VDC regulated
• Isolation Voltage: Typically 1500 VDC or higher
• Compact Size: Small footprint for space-constrained applications
• High Efficiency: Minimizes power loss and heat generation
• Short Circuit Protection: Protects the converter and load from damage

Benefits

• Galvanic Isolation: Provides electrical isolation between input and output, enhancing safety and reducing ground loops.
• Stable Output Voltage: Regulated output ensures consistent performance of connected devices.
• Easy Integration: Simple to incorporate into existing power systems.
• Reliable Performance: Designed for long-term operation in demanding environments.
• Protection Features: Short circuit protection enhances system robustness.

Technical Specifications

The IZ2415S accepts a nominal 24 VDC input voltage (typically a range of 18-36 VDC). It provides a regulated 15 VDC output voltage. The isolation voltage is typically 1500 VDC or higher, providing robust electrical isolation. The operating temperature range is typically -40°C to +85°C. The efficiency is typically in the range of 75-85%, depending on the load. The module features continuous short-circuit protection and over-temperature protection. The case is typically a potted module for enhanced environmental protection. It meets relevant safety standards such as EN60950 and UL60950. Full power is typically available up to 70°C, with derating above that temperature.
