Same model may have multiple batches, images only for reference.

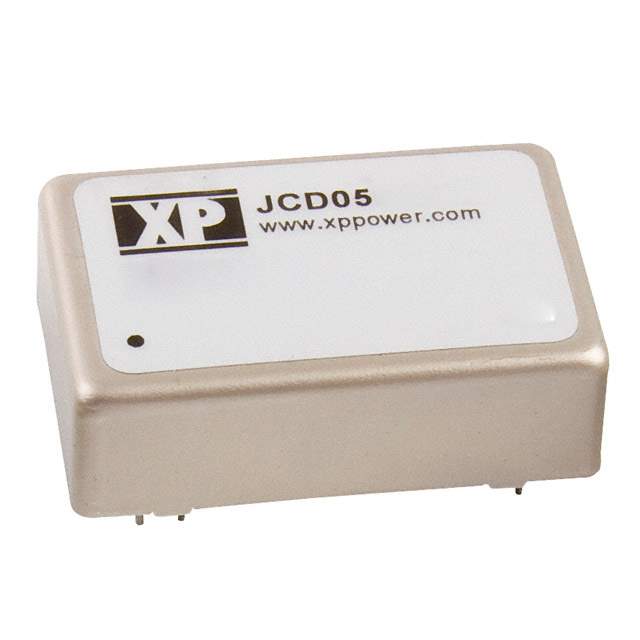

JCD0505D12 Real Image
Same model may have multiple batches, images only for reference.

JCD0505D12

Part No JCD0505D12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 208mA 4.5V - 9V Input
Datasheet
JCD0505D12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCD (5W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 208mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number 62368-1
Base Product Number JCD0505
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340380-JCD0505D12
Ultra Librarian 3D Model Ultra Librarian JCD0505D12 CAD Model

Description

The JCD0505D12 is a DC-DC converter from XP Power.

  • Package: 24-DIP Module, 8 Leads
  • Power: 5W
  • Efficiency: 82%
  • Voltage Isolation: 1.6 kV
  • Number of Outputs: 2
  • Maximum Output Current: 208mA
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage (Channel 1): 12V
  • Output Voltage (Channel 2): -12V
  • Application: ITE (Commercial)
