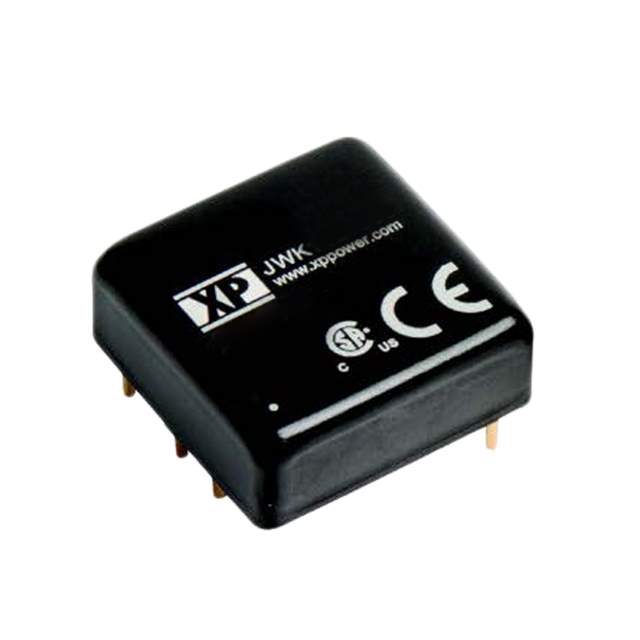

JSM1048S12 Real Image
Same model may have multiple batches, images only for reference.

JSM1048S12

Part No JSM1048S12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 10W  /  Isolated Module DC DC Converter 1 Output 12V 830mA 36V - 75V Input
Datasheet
JSM1048S12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series JSM10 (10W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 830mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module, 5 Leads
Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Standard Number 62368-1
Base Product Number JSM1048
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-3501
Standard Package 10
Win Source Part Number 1177382-JSM1048S12
Ultra Librarian 3D Model Ultra Librarian JSM1048S12 CAD Model

Description

The JSM1048S12 is an isolated module DC-DC converter manufactured by XP Power.

  • Power: 10W
  • Voltage Isolation: 1.5 kV
  • Maximum Current Output: 830mA
  • Efficiency: 89 percent
  • Mounting Type: through-hole
  • Package/Case: 6-DIP module, 5 leads
