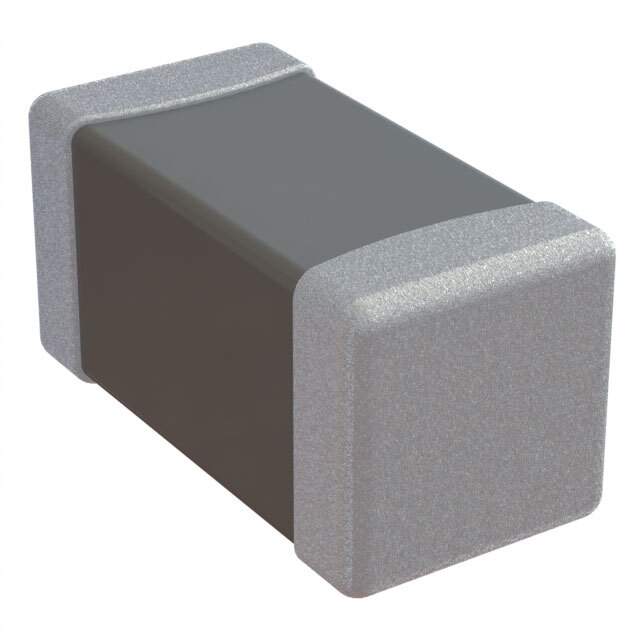

AC0402JRNPO9BN470 Real Image
Same model may have multiple batches, images only for reference.

AC0402JRNPO9BN470

Part No AC0402JRNPO9BN470
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 47PF 50V C0G/NPO 0402 / 47 pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr YAGEO
Series AC
Package Tape & Reel
Capacitance 47 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 311-3025-2,AC0402JRNPO9BN470-ND,311-3025-1,311-3025-6
Standard Package 10,000
Win Source Part Number 967895-AC0402JRNPO9BN470
Ultra Librarian 3D Model Ultra Librarian AC0402JRNPO9BN470 CAD Model

Description

The YAGEO AC series ceramic capacitor has a capacitance of 47 pF with a tolerance of ±5%.

  • Capacitance: 47 pF
  • Tolerance: ±5%
  • Voltage Rating: 50V
  • Temperature Coefficient: C0G, NP0
  • Rating: AEC-Q200 rated
  • Application: automotive applications
  • Package: tape & reel
  • Standard Package: 10,000
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS: 8532.24.0020 compliant
