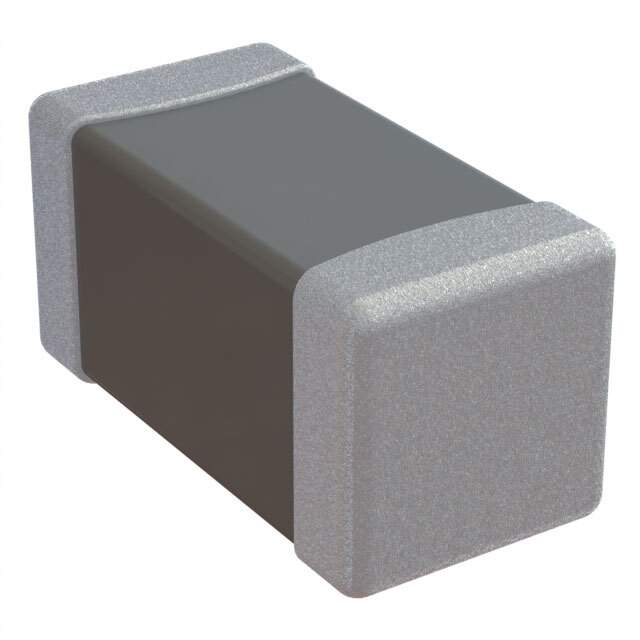

Same model may have multiple batches, images only for reference.

AC0603KRX7R9BB102

Name: AC0603KRX7R9BB102
Brand: Yageo
SKU: 1328741
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AC0603KRX7R9BB102
Manufacturer	Yageo
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 50V X7R 0603 / 1000 pF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Manufacturer	Yageo
Packaging	Reel - TR
Capacitance	1000 pF
Tolerance	±10%
Voltage - Rated	50V
Temperature Coefficient	X7R
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Mounting	Surface Mount, MLCC
Case / Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max)	0.035" (0.90mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Part Number	311-3116-6,311-3116-1,311-3116-2
Standard Package	4,000
Win Source Part Number	1328741-AC0603KRX7R9BB102
Ultra Librarian 3D Model	Ultra Librarian AC0603KRX7R9BB102 CAD Model

Alternative Products

Description

The Yageo capacitor is a ceramic capacitor that is part of the Capacitors category.

Category: Capacitors
Application: Automotive
Package: Reel - TR
Standard Package: 4,000
Capacitance: 1000 pF
Tolerance: ±10%
Voltage Rating: 50V
Temperature Coefficient: X7R
AEC-Q200 Rated: Yes
Mounting: Surface-mount technology (SMT)
Package: 0603 (1608 Metric)
Operating Temperature: -55°C to 125°C
ECCN: EAR99 compliant
ROHS3 compliant: Yes
