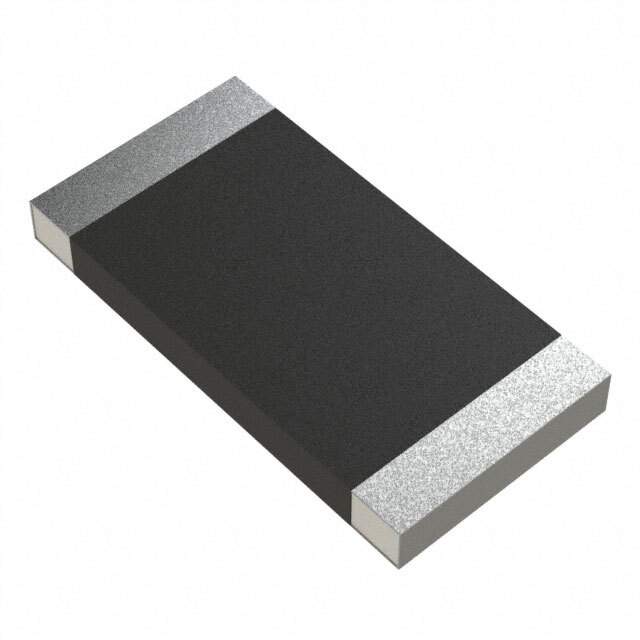

PA2512FKE7W0R01E Real Image
Same model may have multiple batches, images only for reference.

PA2512FKE7W0R01E

Part No PA2512FKE7W0R01E
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 10 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Manufacturer Yageo
Series PA_E
Package Reel - TR
Operating Temperature Range -55°C ~ 170°C
Package 2512 (6432 Metric)
Case / Package 2512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number YAG6093CT, YAG6093TR, YAG6093DKR
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929946-PA2512FKE7W0R01E
Ultra Librarian 3D Model Ultra Librarian PA2512FKE7W0R01E CAD Model

Description

The PA2512FKE7W0R01E is a 2W chip resistor from Yageo's PA_E series.

  • Power: 2W
  • Series: PA_E
  • Resistance: 10 mOhms ±1%
  • Application: Current Sensing
  • Operating Temperatures: -55°C to 170°C
  • Feature: Moisture Resistant
  • Compliance: AEC-Q200 compliant
  • Suitable for: Automotive Applications
  • Package: 2512 (6432 metric)
  • Supplied on: Reel
  • Supply: Balance
