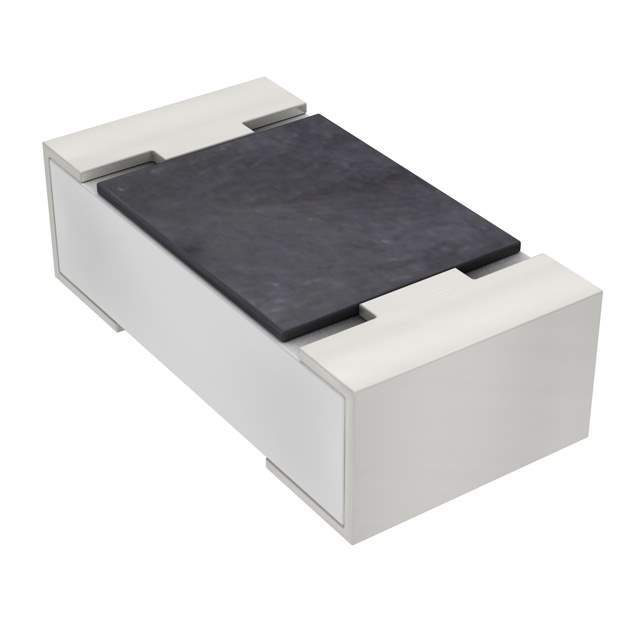

RC0402FR-07560RL

Name: RC0402FR-07560RL
Brand: Yageo
SKU: 1236296
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RC0402FR-07560RL
Manufacturer	Yageo
Catalog	Chip Resistor - Surface Mount
Description	RES 560 OHM 1% 1/16W 0402 / 560 Ohms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Moisture Resistant Thick Film
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	YAGEO
Series	RC_L
Package	Tape & Reel
Resistance	560 Ohms
Tolerance	±1%
Power (Watts)	0.063W, 1/16W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.016" (0.40mm)
Number of Terminations	2
Other Names	232270675601L,311-560LRCT,9C04021A5600FLPF3,RC0402FR07560RL,311-560LRTR,311-560LRDKR
Standard Package	10,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Win Source Part Number	1236296-RC0402FR-07560RL
Ultra Librarian 3D Model	Ultra Librarian RC0402FR-07560RL CAD Model

Description

The 1236296-RC0402FR-07560RL is a chip resistor that belongs to the RC_L series of YAGEO. It has a resistance of 560 Ohms and a tolerance of ±1%.

Composition: Thick Film
Terminations: 2
Power Rating: 0.063W or 1/16W
Temperature Coefficient: ±100ppm/°C
Package: 0402 (1005 Metric)
Packaging: Tape and Reel
Height Seated: 0.016" (0.40mm)
Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture-Resistant: Yes
Operating Temperature Range: -55°C to 155°C
Failure Rate: Not Specified
Alternative Parts: 232270675601L, 311-560LRCT, 9C04021A5600FLPF3, RC0402FR07560RL, 311-560LRTR, and 311-560LRDKR
REACH: Unaffected
ECCN: EAR99
HTSUS Code: 8533.21.0030
