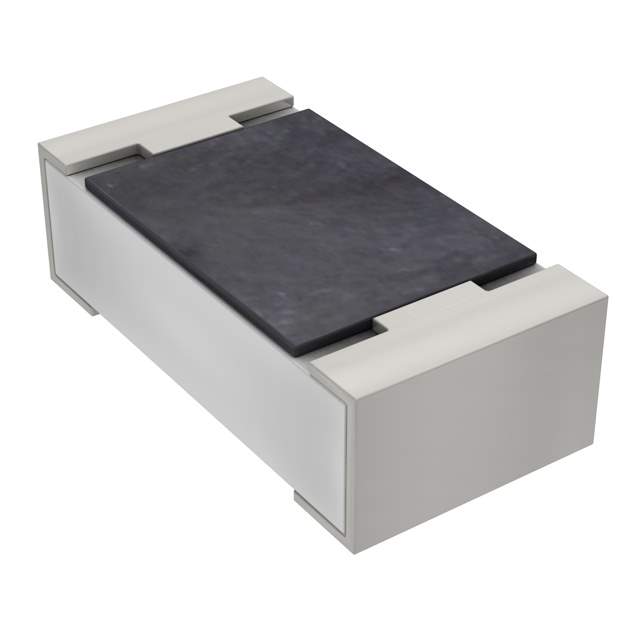

The RC0603FR-07560RL is a thick film chip resistor manufactured by Yageo. It is part of the RC series, which are general-purpose chip resistors suitable for a wide variety of applications. This particular resistor has a resistance value of 560 ohms and a tolerance of 1%, making it a precision component for circuits requiring accurate resistance values.

Applications:

• General electronics circuits
• Consumer electronics
• Industrial equipment
• Telecommunications equipment
• Power supplies

Features:

• Small size: 0603 (1.6mm x 0.8mm)
• Resistance value: 560 ohms
• Tolerance: 1%
• Temperature coefficient: ±100 ppm/°C
• Power rating: 0.1W
• Thick film technology
• RoHS compliant

Benefits:

• High precision: The 1% tolerance ensures accurate resistance values in critical circuits.
• Small size: The 0603 package allows for high-density mounting on PCBs, saving space and reducing overall circuit size.
• Reliable performance: Thick film technology provides stable and reliable resistance values over a wide range of operating conditions.
• Wide operating temperature range: The resistor can operate in temperatures ranging from -55°C to +155°C.
• RoHS compliance: Meets environmental regulations for lead-free manufacturing.

The RC0603FR-07560RL is constructed using a high-quality ceramic substrate with a thick film resistive layer. The resistive layer is trimmed to the specified resistance value using laser trimming techniques. The resistor is then coated with a protective layer to ensure long-term stability and reliability. The terminals are made of solder-plated metal to ensure good solderability. This resistor is ideal for applications where precision, size, and reliability are critical considerations.
