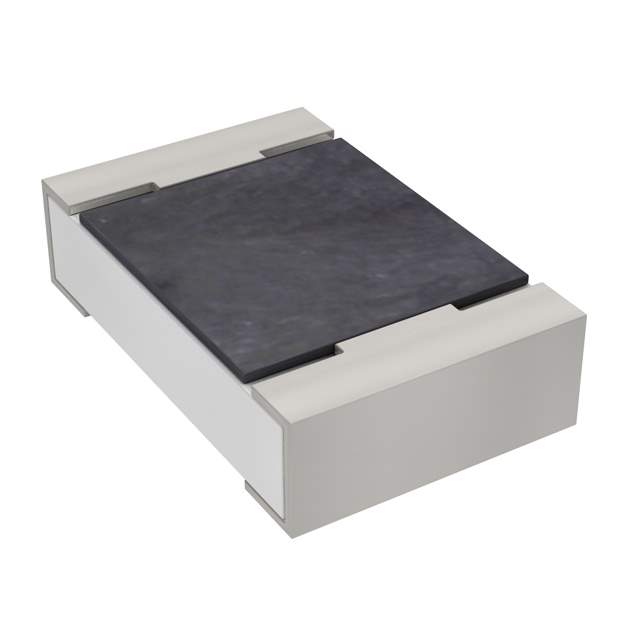

The RC0805FR-07604RL is a thick film chip resistor manufactured by Yageo. It is designed for general-purpose applications and offers a stable resistance of 604 Ohms within a compact 0805 package.

Applications

• Consumer electronics
• Industrial control systems
• Telecommunication equipment
• Automotive electronics
• Power supplies

Features

• 0805 package size
• 604 Ohms resistance
• 1% tolerance
• Thick film element
• RoHS compliant

Benefits

• Provides stable resistance in various environments
• Suitable for high-density circuit designs due to its small size
• Compatible with automated placement equipment
• Reduces PCB space requirements
• Offers a cost-effective solution for general-purpose applications

Additional Details

The RC0805FR-07604RL features a power rating of 0.125W and a temperature coefficient of ±100 ppm/°C. It is constructed with a ceramic substrate and a thick film resistive layer, ensuring reliability and long-term stability. The terminations are made with a nickel barrier plating to enhance solderability and prevent leaching during the soldering process. The operating temperature range is between -55°C and +155°C. Common applications include voltage dividers, current limiting, and pull-up/pull-down resistors in digital circuits. The 1% tolerance ensures accurate resistance values for precise circuit operation.
