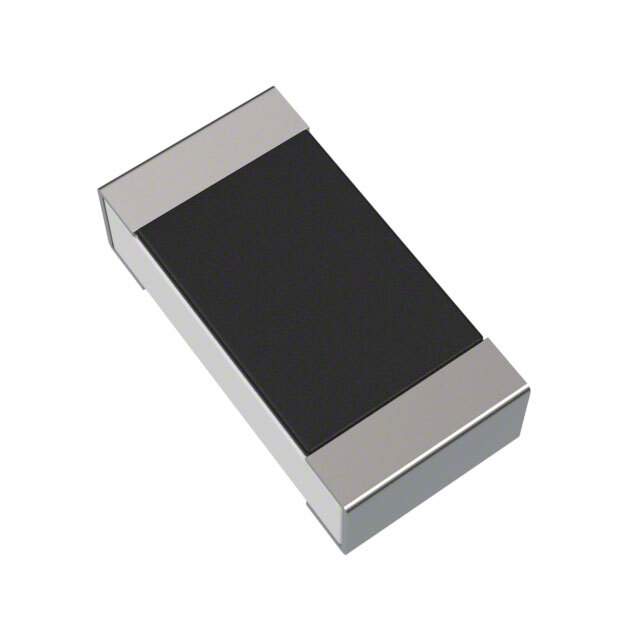

The RC1206FR-07220KL is a surface-mount thick film chip resistor manufactured by Yageo. It has a 1206 package size, meaning it measures 0.12 inches in length and 0.06 inches in width. This resistor is designed for various general-purpose electronic applications where precise resistance is needed.

Applications:

• Signal Conditioning Circuits: Used to adjust signal levels in electronic circuits.
• Voltage Dividers: Implemented to create specific voltage levels in electronic systems.
• Current Limiting Resistors: Placed in circuits to limit the amount of current flowing through a component.
• Pull-Up and Pull-Down Resistors: Used in digital circuits to define logic states.
• Feedback Resistors: Employed in operational amplifier circuits to control gain and stability.

Features:

• 1206 Package Size: Standard surface-mount footprint for easy automated assembly.
• Thick Film Technology: Provides stable and reliable performance.
• Resistance Value: 220kΩ (220,000 ohms).
• Tolerance: 1% tolerance, ensuring accurate resistance value.
• Power Rating: 0.25W (1/4 Watt), capable of handling moderate power dissipation.
• Temperature Coefficient of Resistance (TCR): Low TCR for stable resistance over varying temperatures.

Benefits:

• Compact Size: Suitable for high-density circuit board designs.
• High Accuracy: 1% tolerance allows for precise circuit performance.
• Reliable Performance: Thick film construction ensures long-term stability.
• Easy Assembly: Surface-mount design simplifies automated assembly processes.
• Cost-Effective: Offers a balance between performance and cost.

Additional Details:

The 'FR' in the part number indicates flame retardant properties. The resistor is designed to operate within a specific voltage range, and exceeding this can lead to damage. Proper soldering techniques are necessary for reliable connections. It's crucial to consider power dissipation to prevent overheating and ensure long-term reliability. The standard operating temperature range is typically -55°C to +155°C, but the datasheet should be consulted for exact specifications. Its small size and accurate resistance value make it a versatile component in many electronic designs.
