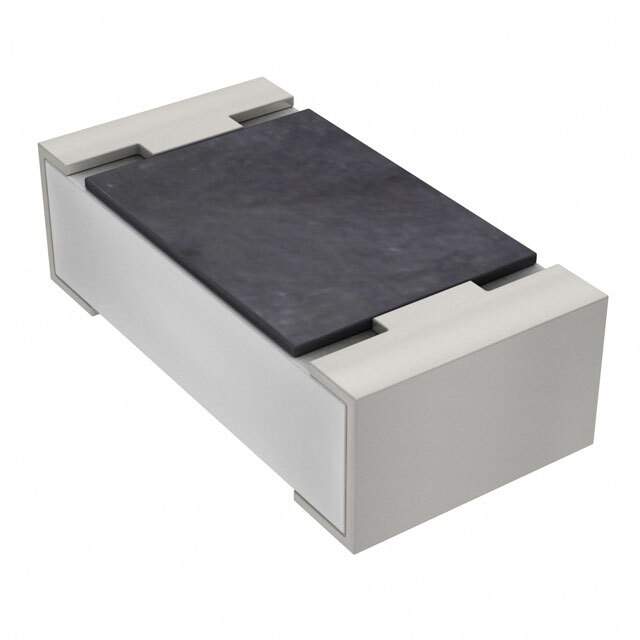

RT0603FRE07820RL Real Image1 RT0603FRE07820RL Real Image2
RT0603FRE07820RL Real Image1 RT0603FRE07820RL Real Image2
Same model may have multiple batches, images only for reference.

RT0603FRE07820RL

Part No RT0603FRE07820RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 1% 1/10W 0603  /  820 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr YAGEO
Series RT
Package Tape & Reel
Resistance 820 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names YAG2324TR,YAG2324CT,YAG2324DKR,RT0603FRE07820RL-ND
Standard Package 5,000
Win Source Part Number 979395-RT0603FRE07820RL
Ultra Librarian 3D Model Ultra Librarian RT0603FRE07820RL CAD Model

Description

The YAGEO RT series chip resistor is a thin film resistor with a resistance of 820 Ohms and a tolerance of ±1%.

  • Resistance: 820 Ohms
  • Tolerance: ±1%
  • Power Rating: 0.1 watts
  • Temperature Coefficient: ±50ppm/°C
  • Package: 0603
  • Terminations: 2
  • Supplied: Tape and reel
  • Maximum Seated Height: 0.022" (0.55mm)
  • Operating Temperature Range: -55°C to 155°C
  • Manufacturer: YAGEO
