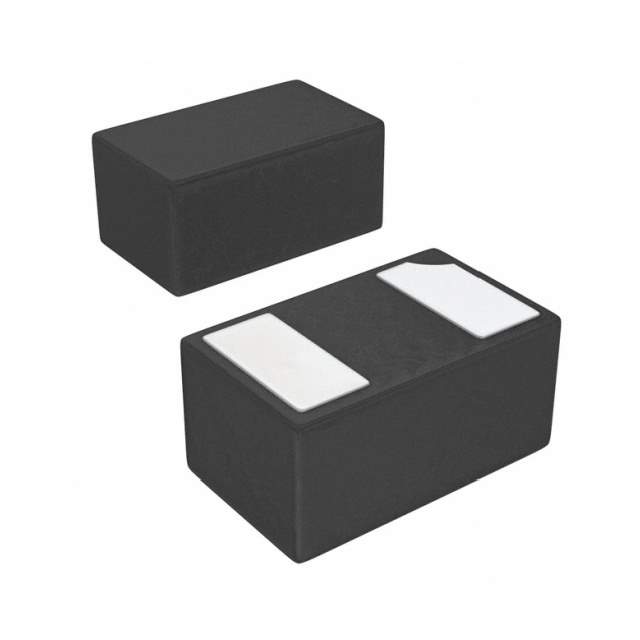

SBD8C05L01

Name: SBD8C05L01
Brand: Yageo
SKU: 1334978
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SBD8C05L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD882, 5V, 12V, REEL / 14V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Datasheet	SBD8C05L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.6V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	9A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	SOD-882
Supplier Device Package	SOD-882
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	13-SBD8C05L01DKR,13-SBD8C05L01CT,13-SBD8C05L01TR
Standard Package	10,000
Win Source Part Number	1334978-SBD8C05L01
Ultra Librarian 3D Model	Ultra Librarian SBD8C05L01 CAD Model

Alternative Products

Description

The Yageo SBD8C05L01 is a Zener diode with a reverse standoff voltage of 5V (max) and a breakdown voltage of 5.6V.

Reverse Standoff Voltage: 5V (max)
Breakdown Voltage: 5.6V
Application: General Purpose
Mounting: Surface Mount
Direction: Bidirectional
Clamping Voltage: 14V @ Ipp
Capacitance: 30pF @ 1MHz
Package: SOD-882
Operating Temperature Range: -55°C to 150°C (TJ)
Compliance: ROHS3 compliant
