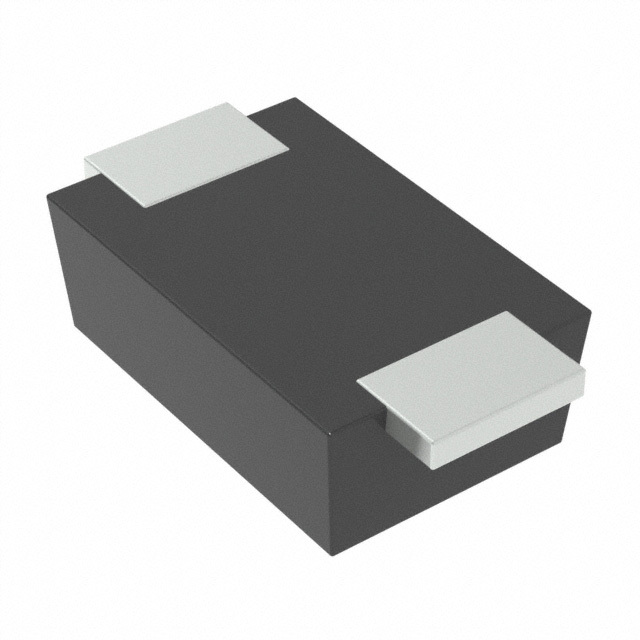

Same model may have multiple batches, images only for reference.

SJD12A28L01

Name: SJD12A28L01
Brand: Yageo
SKU: 1362292
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A28L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ARRAY ESD, SOD-123, 28V 45.4 / 45.4V Clamp 4.4A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	SJD12A28L01
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	28V
Voltage - Breakdown (Min)	31.1V
Voltage - Clamping (Max) @ Ipp	45.4V
Current - Peak Pulse (10/1000µs)	4.4A
Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
Base Product Number	SJD12A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362292-SJD12A28L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A28L01 CAD Model

Alternative Products

Description

The 1362292-SJD12A28L01 is a surface mount TVS diode with a voltage rating of 28V from YAGEO. It is designed to protect electronic circuits from transient voltage spikes.

Voltage: 28V
Package: DO-219AA (SOD-123S)
Power Rating: 1000W
Peak Pulse Current: 4.4A
Temperature Range: -55°C to 150°C
Channel: Unidirectional
Mounting Type: Surface Mount
Status: Active
ECCN: Compliance
