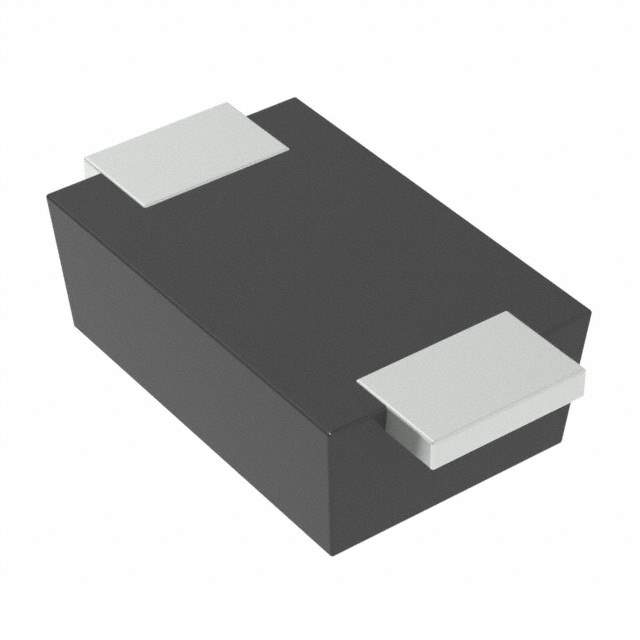

Same model may have multiple batches, images only for reference.

SJD12A36L01

Name: SJD12A36L01
Brand: Yageo
SKU: 1334990
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A36L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS DIODE 36VWM 58.1VC SOD123S / 58.1V Clamp 3.5A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	3.5A
Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
Base Product Number	SJD12A
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	YAG6683CT,YAG6683TR,YAG6683DKR
Standard Package	3,000
Win Source Part Number	1334990-SJD12A36L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A36L01 CAD Model

Alternative Products

Description

The Yageo SJD12A36L01 is an electronic component that is designed for use in various electronic devices.

Category: Circuit Protection TVS - Diodes
Manufacturer: Yageo
Type: Zener
Application: General purpose
Voltage - Reverse Standoff: 36V
Voltage - Breakdown: 40V
Voltage - Clamping (max) @ Ipp: 58.1V
Power - Peak Pulse: 1000W (1kW)
