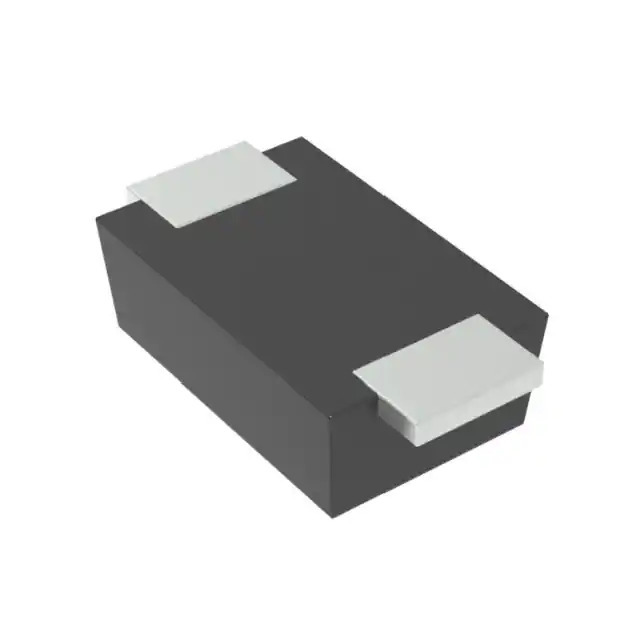

SJD12A70L01

Name: SJD12A70L01
Brand: Yageo
SKU: 1362328
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A70L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 70V, 113V, RE / 113V Clamp 1.8A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12A70L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	SJD12A(C)XXXL01
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	70V
Voltage - Breakdown (Min)	77.8V
Voltage - Clamping (Max) @ Ipp	113V
Current - Peak Pulse (10/1000µs)	1.8A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362328-SJD12A70L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A70L01 CAD Model

Alternative Products

Description

The SJD12A70L01 is a Zener TVS Diode from YAGEO.

Reverse Standoff Voltage: 70V
Breakdown Voltage: 77.8V
Clamping Voltage: 113V @ 1.8A peak pulse current
Power Rating: 200W
Mounting Type: Surface Mount
Package: DO-219AA
Packaging: Tape and Reel
ECCN: EAR99
HTSUS: 8541.10.0080
