Same model may have multiple batches, images only for reference.

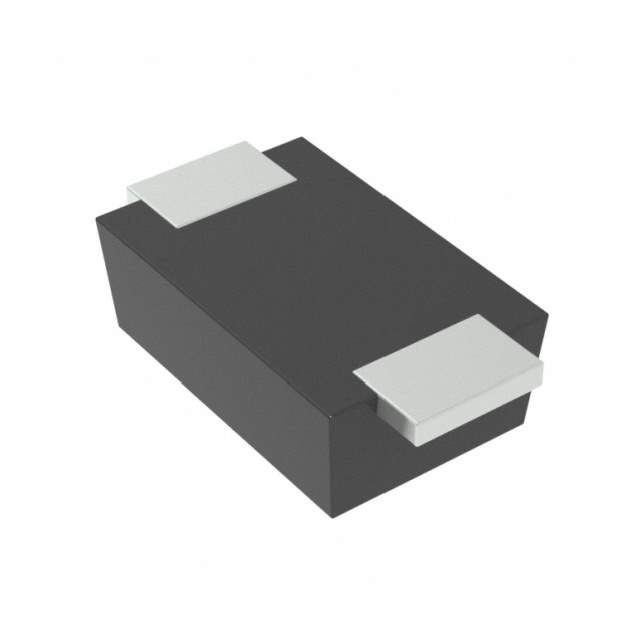

SJD12C51L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12C51L01

Part No SJD12C51L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, SOD-123S, 51V, 82.4V, R / 82.4V Clamp 2.5A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet
SJD12C51L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Yageo
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 51V
Voltage - Breakdown (Min) 56.7V
Voltage - Clamping (Max) @ Ipp 82.4V
Current - Peak Pulse (10/1000µs) 2.5A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-219AA
Supplier Device Package SOD-123S
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SJD12C51L01TR
Standard Package 3,000
Win Source Part Number 1335006-SJD12C51L01
Ultra Librarian 3D Model Ultra Librarian SJD12C51L01 CAD Model

Description

The Yageo SJD12C51L01 is a Zener diode that belongs to the Circuit Protection>TVS - Diodes category of electronic components. This diode is manufactured by Yageo and is available through Win Source.

  • Standard Package: 3,000
  • Designed For: use in general-purpose applications
  • Voltage Reverse Standoff: 51V
  • Voltage Breakdown: 56.7V
  • Voltage Clamping @ maximum: 82.4V @ Ipp
  • Power Peak Pulse: 200W
  • Bidirectional Channel: 1
  • Current Peak Pulse: 2.5A @ 10/1000µs
  • Supplier Device Package: SOD-123S
  • Temperature Range: -55°C to 150°C (TJ)
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
