Same model may have multiple batches, images only for reference.

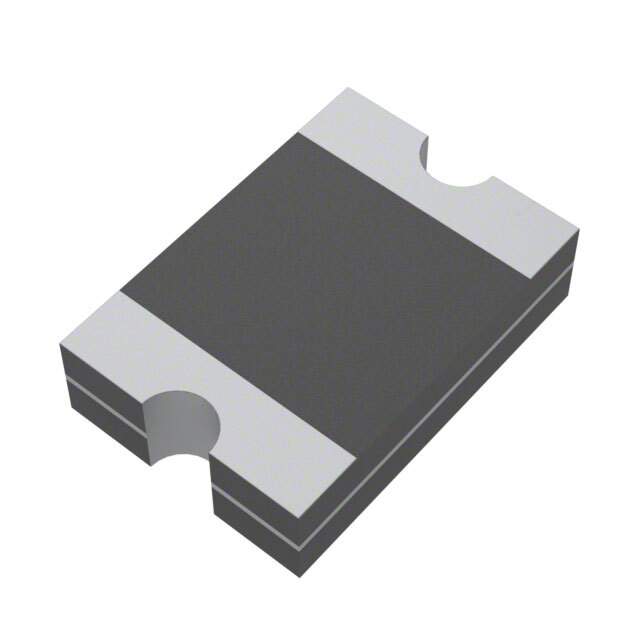

SMD1210B075TF Real Image
Same model may have multiple batches, images only for reference.

SMD1210B075TF

Part No SMD1210B075TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1210, 6V 0.75A, REEL 7" / Polymeric PTC Resettable Fuse 6V 750 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B075TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Yageo
Packaging Reel - TR
Type Polymeric
Voltage - Max 6V
Current - Max 100 A
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 400 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.033" (0.85mm)
Approval Agency cUL, TUL, UL
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number YAG6744CT,YAG6744DKR,YAG6744TR
Standard Package 4,000
Win Source Part Number 1335033-SMD1210B075TF
Ultra Librarian 3D Model Ultra Librarian SMD1210B075TF CAD Model

Description

The Yageo PTC Resettable Fuse is a polymeric circuit protection component that is designed to be surface mounted. Its size and dimension of 0.127 inches in length and 0.102 inches in width makes it easy to mount on circuit boards.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Current Hold: 750mA
  • Trip Current: 1.5A
  • Time to Trip: 100ms
  • Temperature Range for Operation: between -40°C to 85°C
  • Resistance: 70 mOhms
  • Post-Trip Resistance: 400 mOhms
  • Approval Agency Certifications: cUL, TUL, and UL
  • ROHS3 Compliant: Yes
  • Case or Package: 1210 (3225 Metric), Concave
  • Standard Package: 4,000 units
