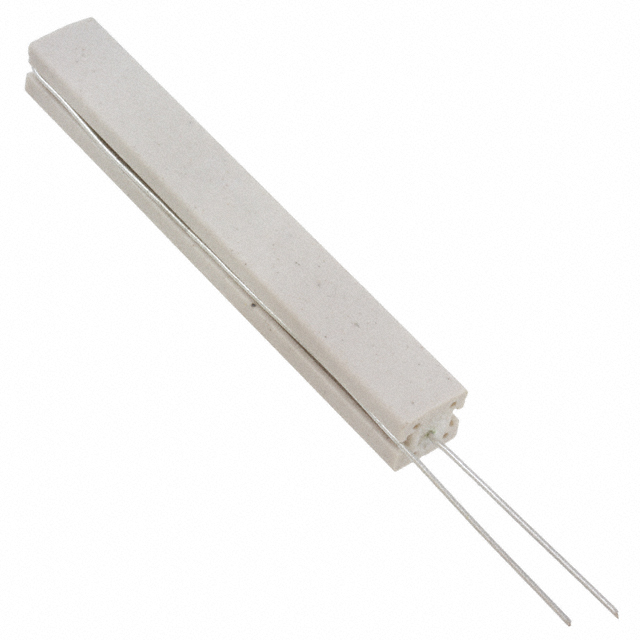

Same model may have multiple batches, images only for reference.
SQP500JB-22R Yageo – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SQP500JB-22R

Part No SQP500JB-22R
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 22 OHM 5% 5W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Cement
Features Flame Proof, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 155°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.374" x 0.354" Rectangular x 0.866" L (9.50mm x 9.00mm x 22.00mm)
Number of Terminations 2
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1591989-SQP500JB-22R
Ultra Librarian 3D Model Ultra Librarian SQP500JB-22R CAD Model
