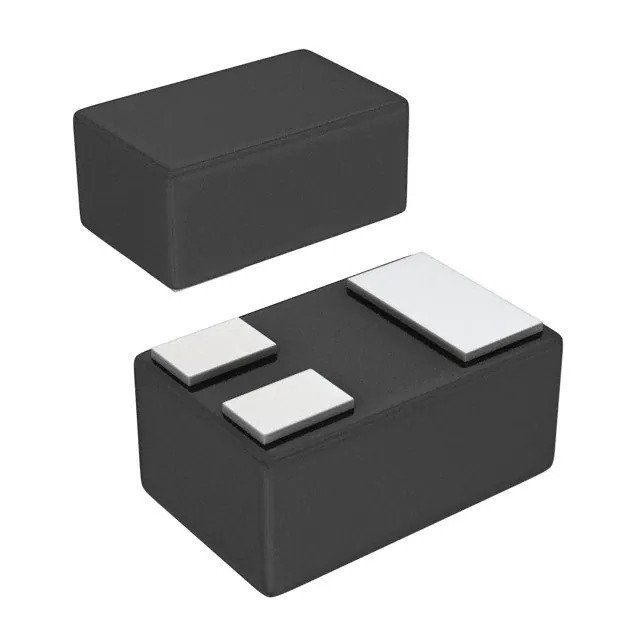

UAD8A05L02

Name: UAD8A05L02
Brand: Yageo
SKU: 1362436
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UAD8A05L02
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, DFN1006-3L, 5V, 14V, RE / 14V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006-3
Datasheet	UAD8A05L02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	-
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	2
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI, USB
Capacitance @ Frequency	0.75pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-101, SOT-883
Supplier Device Package	DFN1006-3
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362436-UAD8A05L02
Ultra Librarian 3D Model	Ultra Librarian UAD8A05L02 CAD Model

Alternative Products

Description

The UAD8A05L02 is a Zener type TVS diode designed for circuit protection against transient voltage events.

Voltage Reverse Standoff: 5V (Max)
Breakdown Voltage: 6V (Min)
Clamping Voltage: 14V @ 3A (8/20μs)
Peak Pulse Current: 3A (8/20μs)
Type: Bidirectional
Channels: 2 Unidirectional
Capacitance @ Frequency: 0.75pF @ 1MHz
Application: HDMI, USB
Package / Case: SC-101 (SOT-883)
Mounting Type: Surface Mount
Status: Active
Packaging: Tape & Reel
Operating Temperature: -55°C to 150°C (TJ)
ECCN: EAR99
