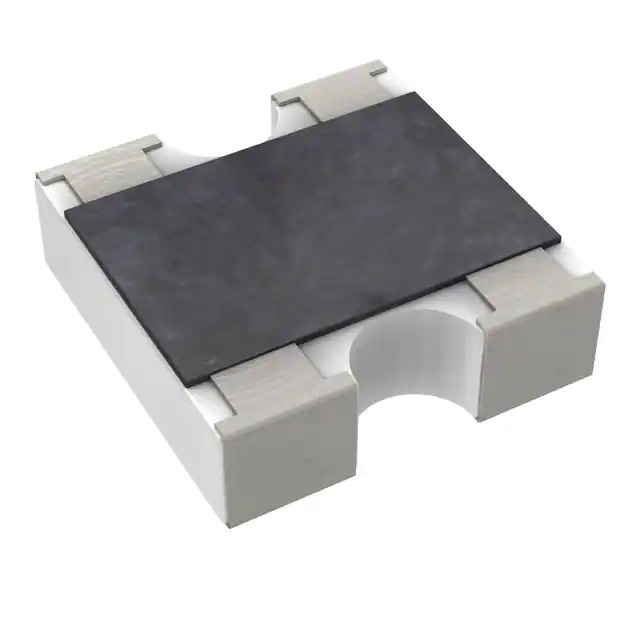

YC122-JR-072K2L Yageo
Same model may have multiple batches, images only for reference.

YC122-JR-072K2L

Part No YC122-JR-072K2L
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 2 RES 2.2K OHM 0404
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr YAGEO
Series YC122
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 2.2k
Tolerance ±5%
Number of Resistors 2
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 4
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, DDRAM, SDRAM
Mounting Type Surface Mount
Package / Case 0404 (1010 Metric), Convex
Supplier Device Package -
Size / Dimension 0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max) 0.016" (0.40mm)
Base Product Number YC122-JR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374089-YC122-JR-072K2L
Ultra Librarian 3D Model Ultra Librarian YC122-JR-072K2L CAD Model

Description

The YAGEO 1374089-YC122-JR-072K2L is a resistor network array with a resistance of 2.2k ohms.

  • Number of Resistors: 2
  • Power Rating per Element: 62.5mW
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Series: YC122
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Package/Case: 0404 with Convex Shape
  • Applications: Automotive AEC-Q200, DDRAM, and SDRAM circuits
  • Temperature Range: -55°C to 155°C
  • REACH Regulations: Unaffected
