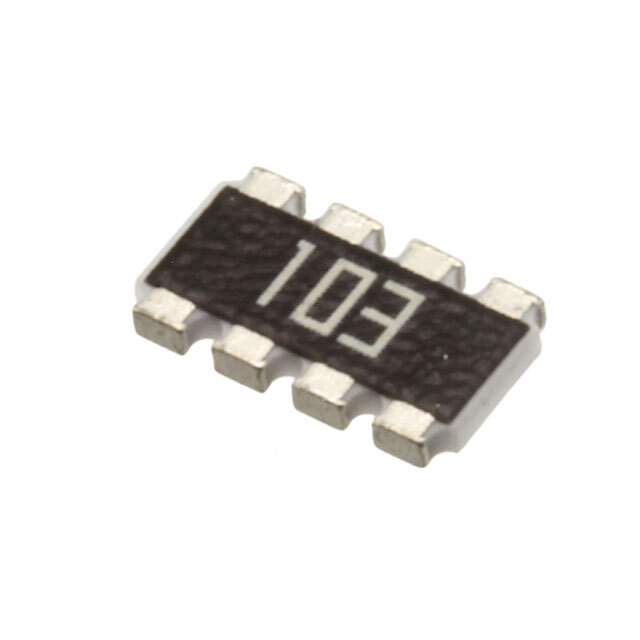

YC324-JK-0747R Real Image
Same model may have multiple batches, images only for reference.

YC324-JK-0747R

Part No YC324-JK-0747R
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 47 OHM 2012
Datasheet
YC324-JK-0747R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 125mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 155°C
Applications DDRAM, SDRAM
Mounting SMD (SMT)
Height - Seated (Max) 0.028" (0.70mm)
Win Source Part Number 416935-YC324-JK-0747R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian YC324-JK-0747R CAD Model

Description

The Yageo YC324-JK-0747R is a surface-mount device (SMD) resistor designed for use in DDRAM and SDRAM applications.

  • Applications: DDRAM and SDRAM applications
  • Resistance: 47 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Circuits: Four isolated circuits
  • Package: Reel
  • Power Rating: 125mW per element
  • Operating Temperature: -55°C to 155°C
  • Manufacturer: Yageo
