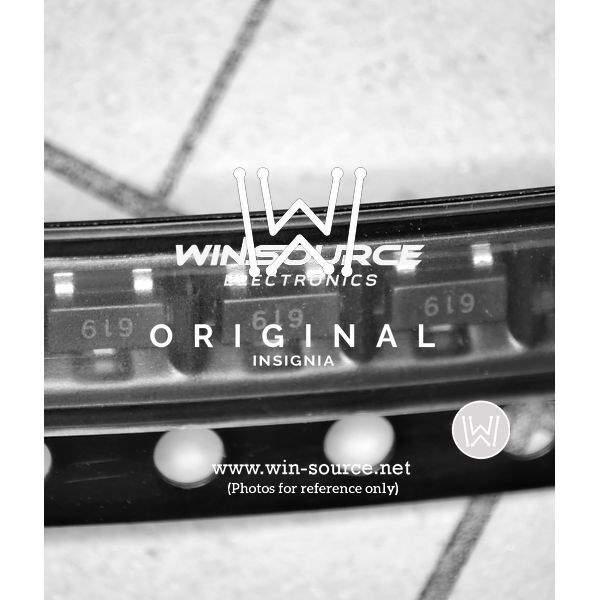

The FMMT619 is a high-performance NPN transistor manufactured by Zetex Semiconductors (now Diodes Incorporated). It is specifically designed for applications requiring high gain and low saturation voltage. This transistor is ideal for use in amplification and switching circuits where efficiency and signal integrity are critical.

Applications:

• Low noise amplifiers
• High-frequency amplifiers
• Switching circuits
• Portable devices
• Battery-powered applications

Features:

• High Current Gain: Offers a high DC current gain (hFE), ensuring efficient amplification.
• Low Saturation Voltage: Provides a low collector-emitter saturation voltage (VCE(sat)), minimizing power loss.
• Small Signal Amplification: Optimized for small signal amplification.
• Surface Mount Package: Comes in a compact SOT-23 package for efficient PCB assembly.
• Lead-Free: Compliant with RoHS standards, ensuring environmental safety.

Benefits:

• Improved Signal Amplification: High gain ensures strong and clear signal amplification.
• Reduced Power Consumption: Low saturation voltage minimizes power dissipation and extends battery life in portable devices.
• Efficient Switching: Fast switching speeds allow for efficient operation in switching circuits.
• Compact Design: Small SOT-23 package enables compact and space-saving designs.
• Environmentally Friendly: Lead-free construction complies with environmental regulations.

Technical Specifications:

Typical technical specifications for the FMMT619 include:

• Collector-Emitter Voltage (VCEO): 20V
• Collector Current (IC): 1A
• Power Dissipation (PD): 500mW
• DC Current Gain (hFE): Typically 100 to 300 (at specified test conditions)
• Saturation Voltage (VCE(sat)): Typically 0.2V at IC = 1A
• Operating Temperature Range: -55°C to +150°C
• Package: SOT-23

The FMMT619 from Zetex Semiconductors is a highly reliable and efficient NPN transistor suitable for various amplification and switching applications. Its high gain, low saturation voltage, and compact SOT-23 package make it an excellent choice for designers looking to optimize performance and minimize power consumption in their circuits. This transistor is especially well-suited for portable devices and other battery-powered applications where efficiency is paramount.
