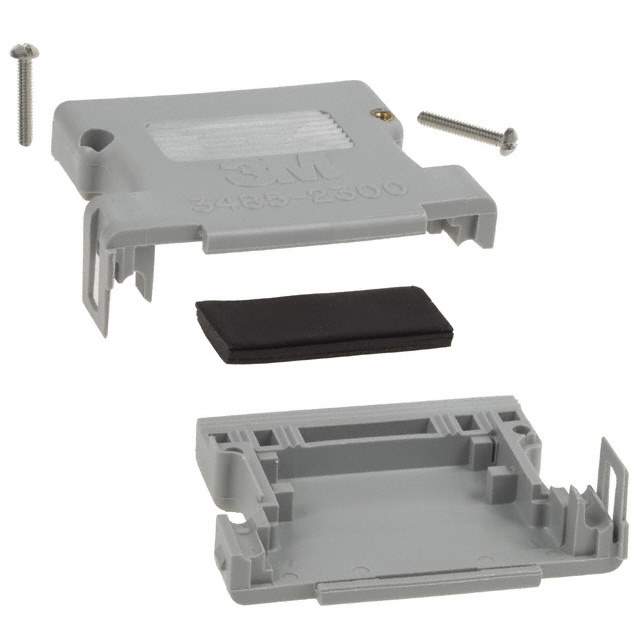

3485-2300F Real Image
Same model may have multiple batches, images only for reference.

3485-2300F

Part No 3485-2300F
Manufacturer 3M
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 25POS 180DEG GRAY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 25 Position Two Piece Backshell Connector Gray 180° Unshielded
Manufacturer 3M
Series 3485
Package Bulk
Family Name 3485
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 3485-2300, 34852300F, 5400736334, 54007363347, 7000057896, 80-6101-8217-4, 80610182174, MDBF25
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906631-3485-2300F
Ultra Librarian 3D Model Ultra Librarian 3485-2300F CAD Model

Description

The 3M 906631-3485-2300F is a 25 position two-piece backshell connector, with a package of bulk.

  • Positions: 25
  • Type: Two-piece backshell connector
  • Package: Bulk
  • Color: Gray
  • Orientation: 180°
  • Shielding: Unshielded
  • Series: 3485
  • Category: Connectors
  • Supply and Demand: Balanced
  • Package Quantity: 100
  • Estimated Production Lead Time: 11 weeks
  • REACH: Unaffected
  • HTSUS Code: 8538.90.8180
  • Other Part Numbers: 3485-2300, 34852300F, 5400736334, 54007363347, 7000057896, 80-6101-8217-4, 80610182174, MDBF25
