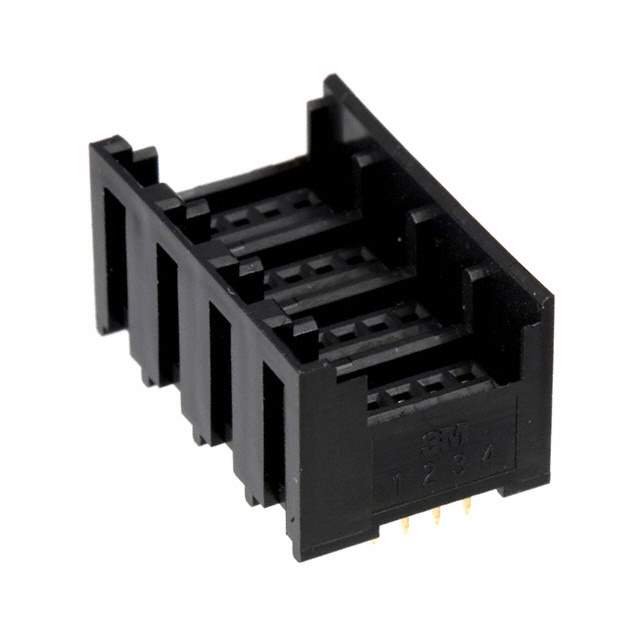

37216-62M3-004PL Real Image
Same model may have multiple batches, images only for reference.

37216-62M3-004PL

Part No 37216-62M3-004PL
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.079 GOLD PCB  /  16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series Mini-Clamp I, 372
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 4
Row Spacing - Mating 0.256" (6.50mm)
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.512" (13.00mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 3A
Voltage Rating 32V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Base Product Number 37216
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 0-45-47452-45022-0,54745245022,3721662M3004PL,4547452450220,7000007609,37216-62M3-004PL-ND,JE150338737,3M5718
Standard Package 100
Win Source Part Number 1154216-37216-62M3-004PL
Ultra Librarian 3D Model Ultra Librarian 37216-62M3-004PL CAD Model

Description

The 3M Mini-Clamp I, 372 series rectangular connector is a receptacle type connector with 16 positions and 4 rows.

  • Series: Mini-Clamp I, 372
  • Connector Type: Receptacle
  • Positions: 16
  • Rows: 4
  • Connection Style: Board-to-Cable/Wire
  • Pitch: 0.079 inches (2.00mm)
  • Contact Material: Copper Alloy
  • Contact Finish Mating: Gold
  • Contact Finish Post: Flash
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Voltage Rating: 32V
  • Current Rating: 3A
  • Mounting Type: Through-Hole
  • Package: Tray
  • Applications: Automotive, General-Purpose, Industrial, Lighting, Medical
  • Manufacturer: 3M
