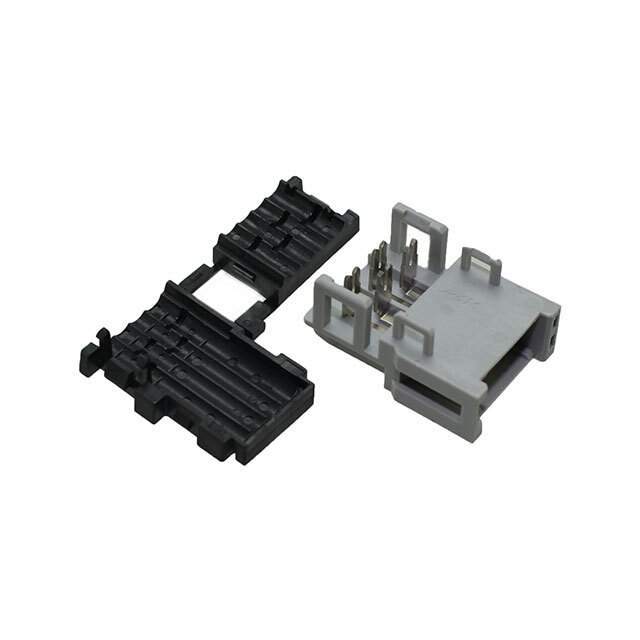

38A04-0020-100 FL Real Image
Same model may have multiple batches, images only for reference.

38A04-0020-100 FL

Part No 38A04-0020-100 FL
Manufacturer 3M
Catalog Rectangular Connectors
Description BRANCH MINI-CLAMP LINK CONN  /  4 Position Rectangular Splice Connector IDC Gold 20 AWG
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series Mini-Clamp II, 387
Package Tray
Connector Type Splice
Number of Positions 4
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 20 AWG
Features Closed End
Contact Finish Gold
Contact Finish Thickness 7.87µin (0.200µm)
Color Black
Base Product Number 38A04
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Other Names 19-38A04-0020-100FL,7100226320,4549395666911,JE-1504-6845-0,54939566691
Standard Package 100
Win Source Part Number 1195066-38A04-0020-100 FL
Ultra Librarian 3D Model Ultra Librarian 38A04-0020-100 FL CAD Model

Description

The 3M 1195066-38A04-0020-100 FL is a high-quality rectangular connector that is designed for free hanging and panel mount applications.

  • Mounting Type: Free Hanging, Panel Mount
  • Series: Mini-Clamp II, 387
  • Number of Positions: 4
  • Pitch: 0.079 inches (2.00mm)
  • Design: Closed End
  • Connector Type: Splice
  • Contact Plating: Gold
  • Contact Plating Thickness: 7.87µin (0.200µm)
  • Package: Tray
  • Standard Package: 100
