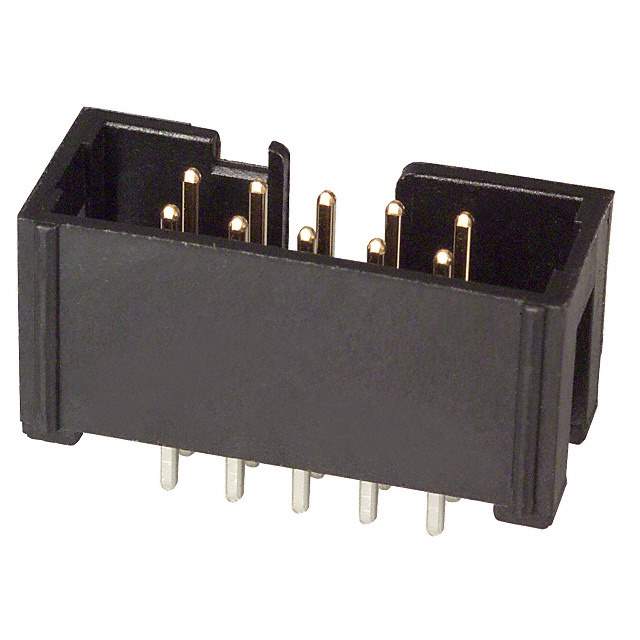

N2510-6003RB Real Image
Same model may have multiple batches, images only for reference.

N2510-6003RB

Part No N2510-6003RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER 10POS STR GOLD T/H
Datasheet
N2510-6003RB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Contact Length - Mating 0.243" (6.17mm)
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1.75A
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 208986-N2510-6003RB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian N2510-6003RB CAD Model

Description

The N2510-6003RB is a 10 position male pin header connector manufactured by 3M. It has a current rating of 1.75A and is suitable for use in various board to board or cable applications. The connector is shrouded with 4 walls and has a row spacing of 0.100" (2.54mm). The supply and demand status is limited.
