Same model may have multiple batches, images only for reference.

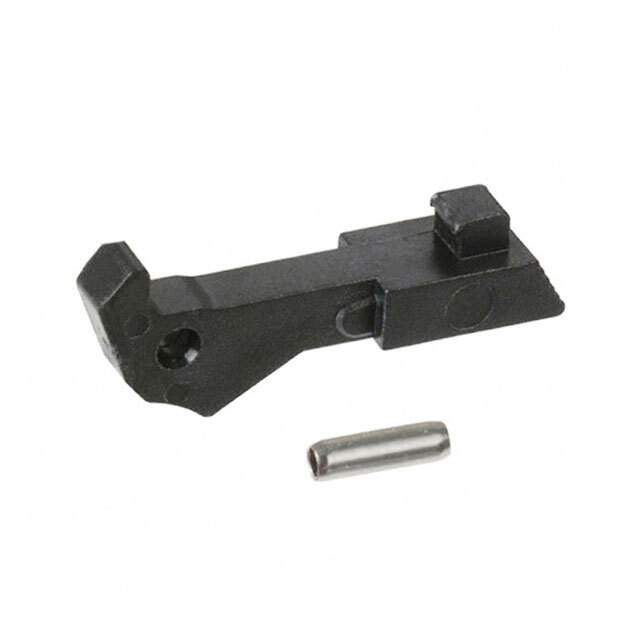

N3505-3B Real Image
Same model may have multiple batches, images only for reference.

N3505-3B

Part No N3505-3B
Manufacturer 3M
Catalog Rectangular Connectors
Description EJECTOR LATCHES BLK LONG W/PINS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features Connector Ejector Latch, Long For 3000 Series
Manufacturer 3M
Package Bulk
Family Name N3505
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 80000900458, 5111165643, 51111656433, 7000057125, 051111-65643, 05111165643, N3505-3B-ND, N35053B, MLKS04
Quantity per package 200
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928672-N3505-3B
Ultra Librarian 3D Model Ultra Librarian N3505-3B CAD Model

Description

The 3M N3505-3B is a connector ejector latch that is long and is compatible with the 3000 series.

  • Type: Connector Ejector Latch
  • Series Compatibility: 3000
  • Package: Bulk
  • Win Source Part Number: 928672-N3505-3B
  • Family Name: N3505
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Pieces per Package: 200
  • MSL Level: Not Applicable
  • Estimated Production Lead Time: 9 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8538.90.8180
  • Other Part Numbers: 80000900458, 5111165643, 51111656433, 7000057125, 051111-65643, 05111165643, N3505-3B-ND, N35053B, MLKS04
