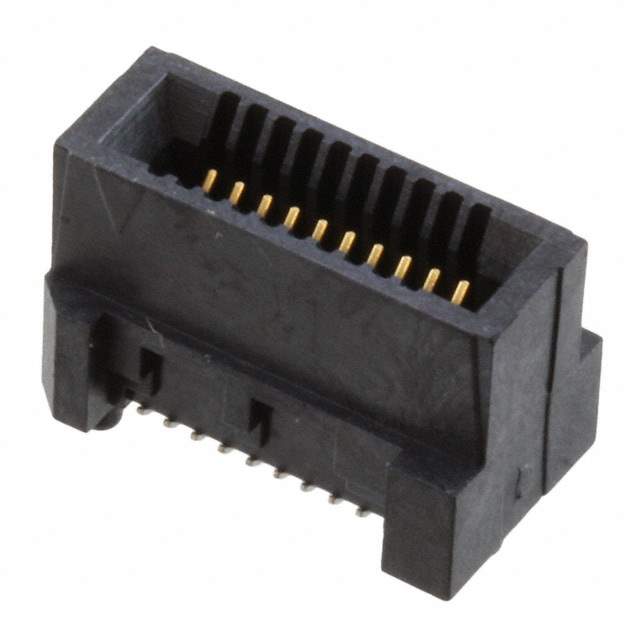

SPD08-020-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-020-RB-TR

Part No SPD08-020-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 20
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names 00051115 59913 2,3M10682CT,XF003832871,7000100884,XA003832871,3M10682DKR,3M10682TR,SPD08020RBTR,51115 59913 2
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 1294257-SPD08-020-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-020-RB-TR CAD Model

Description

The 3M 1294257-SPD08-020-RB-TR is a card edge connector that belongs to the SPD08 series.

  • Series: SPD08
  • Positions: 20
  • Pitch: 0.031 inches
  • Color: Black
  • Feature: Board guide
  • Contact Type: Cantilever
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 30.0μin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), glass-filled
  • Gender: Female
  • Mounting: Surface mountable
  • UL Rating: UL E42769
