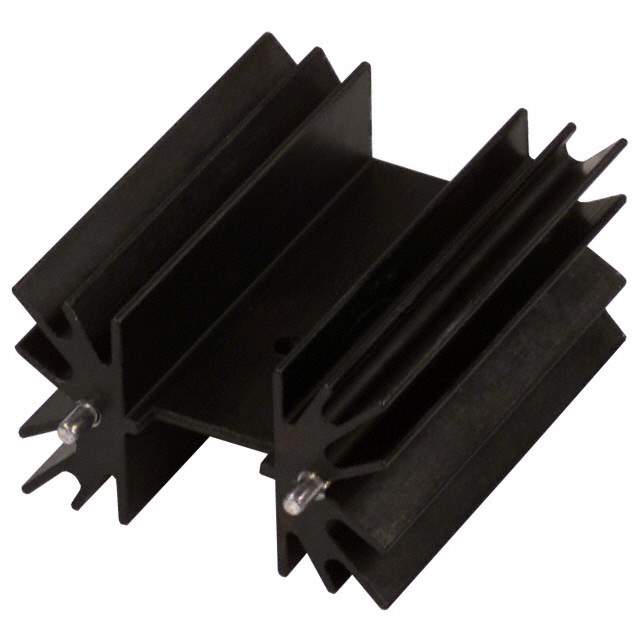

529902B02500G Real Image
Same model may have multiple batches, images only for reference.

529902B02500G

Part No 529902B02500G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 W/PINS BLK 2" / Heat Sink TO-220 Aluminum 6.0W @ 30°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 2.000" (50.80mm)
Width 1.650" (41.91mm)
Fin Height 1.000" (25.40mm)
Power Dissipation @ Temperature Rise 6.0W @ 30°C
Thermal Resistance @ Forced Air Flow 1.50°C/W @ 500 LFM
Thermal Resistance @ Natural 4.50°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 529902
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 043196,HS374
Standard Package 250
Win Source Part Number 1228821-529902B02500G
Ultra Librarian 3D Model Ultra Librarian 529902B02500G CAD Model

Description

The Aavid 529902B02500G is a high-quality thermal heat sink that is designed for use in a variety of applications.

  • Manufacturer: Aavid
  • Power Dissipation: 6.0W @ 30°C
  • Thermal Resistance: 1.50°C/W @ 500 LFM
  • Package: TO-220
  • Attachment Method: Bolt-On and PC Pin
