Same model may have multiple batches, images only for reference.

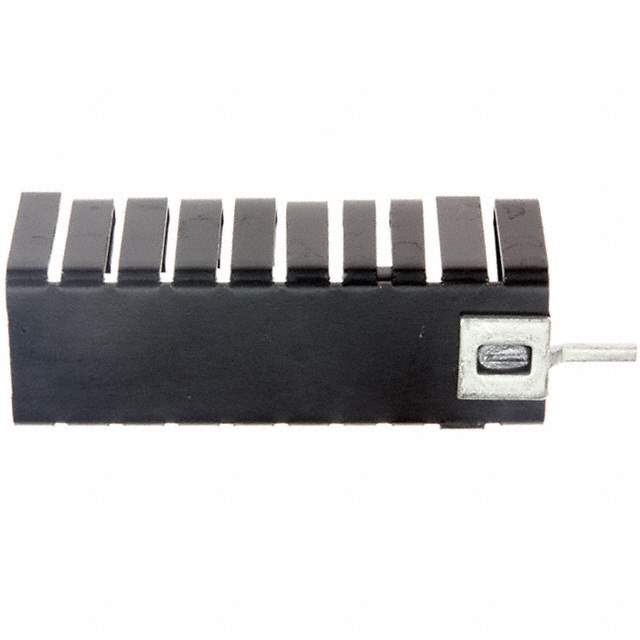

573902B04000G Real Image
Same model may have multiple batches, images only for reference.

573902B04000G

Part No 573902B04000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 CLIP-ON/TAB / Heat Sink TO-220 Aluminum 3.0W @ 60°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Clip and PC Pin
Shape Rectangular, Fins
Length 1.500" (38.10mm)
Width 0.500" (12.70mm)
Fin Height 0.500" (12.70mm)
Power Dissipation @ Temperature Rise 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow 7.00°C/W @ 200 LFM
Thermal Resistance @ Natural 18.80°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 573902
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 041884
Standard Package 1,000
Win Source Part Number 1231943-573902B04000G
Ultra Librarian 3D Model Ultra Librarian 573902B04000G CAD Model

Description

The 1231943-573902B04000G is a board level, vertical heat sink from Aavid, Thermal Division of Boyd Corporation.

  • Series: 573902
  • Material: Aluminum
  • Length: 1.500" (38.10mm)
  • Width: 0.500" (12.70mm)
  • Fin Height: 0.500" (12.70mm)
  • Package: Bulk
  • Attachment Method: Clip, PC Pin
  • Suitable for: TO-220 Package Cooled Devices
  • Power Dissipation: Up to 3.0W @ 60°C Temperature Rise
