Same model may have multiple batches, images only for reference.

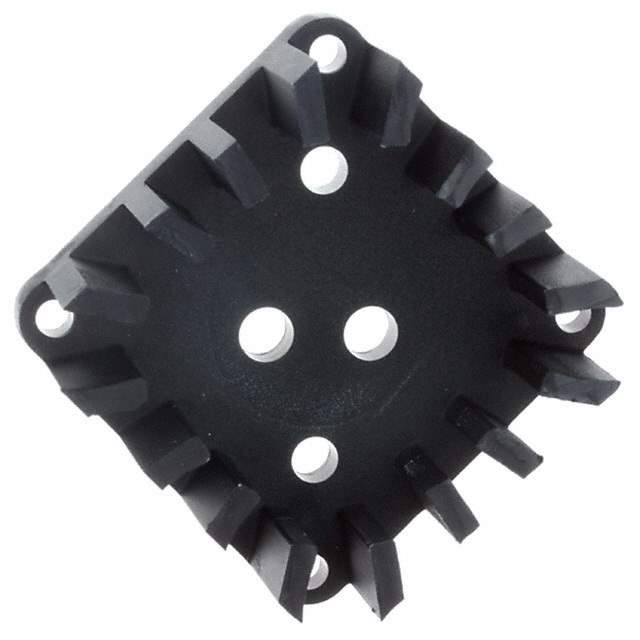

568103B00000G Real Image
Same model may have multiple batches, images only for reference.

568103B00000G

Part No 568103B00000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-3 12W H=.75" BLK / Heat Sink TO-3 Aluminum 5.0W @ 40°C Board Level
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Product Status Obsolete
Type Board Level
Package Cooled TO-3
Attachment Method Bolt On
Shape Square
Length 1.810" (45.97mm)
Width 1.810" (45.97mm)
Fin Height 0.750" (19.05mm)
Power Dissipation @ Temperature Rise 5.0W @ 40°C
Thermal Resistance @ Forced Air Flow 1.00°C/W @ 500 LFM
Thermal Resistance @ Natural 6.70°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 568103
Standard Package 250
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1339297-568103B00000G
Ultra Librarian 3D Model Ultra Librarian 568103B00000G CAD Model

Description

The heat sink from Aavid Thermal Division of Boyd Corporation is a high-quality heat sink that is perfect for thermal management.

  • Material: Aluminum
  • Finish: Black Anodized
  • Shape: Square
  • Package Cooled: TO-3
  • Thermal Resistance (Forced Air Flow): 1.00°C/W
  • Thermal Resistance (Natural Flow): 6.70°C/W
  • Power Dissipation: 5.0W @ 40°C Temperature Rise
  • Attachment Method: Bolt On
  • Length: 1.810" (45.97mm)
  • Width: 1.810" (45.97mm)
  • Status: Obsolete
  • Alternative to: 568103B00000G
