Same model may have multiple batches, images only for reference.

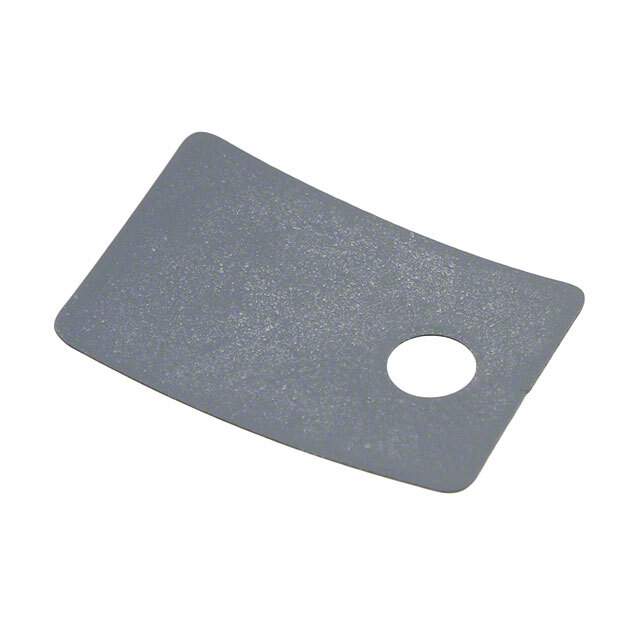

175-6-220P Real Image
Same model may have multiple batches, images only for reference.

175-6-220P

Part No 175-6-220P
Manufacturer Wakefield-Vette
Catalog Thermal - Heat Sinks
Description THERM PAD 18MMX12.7MM GRAY  /  Thermal Pad Gray 18.00mm x 12.70mm Rectangular
Datasheet
175-6-220P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Pads, Sheets
Mfr Wakefield-Vette
Series 175
Package Bulk
Usage TO-220
Type Pad, Sheet
Shape Rectangular
Outline 18.00mm x 12.70mm
Thickness 0.0060" (0.152mm)
Backing, Carrier Polyimide
Color Gray
Thermal Resistivity 0.40°C/W
Thermal Conductivity 0.5W/m-K
Base Product Number 175-6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3920.99.2000
Other Names 1756220P,345-1002
Standard Package 1,000
Win Source Part Number 1177130-175-6-220P
Ultra Librarian 3D Model Ultra Librarian 175-6-220P CAD Model

Description

The Wakefield-Vette 175-6-220P is a thermal pad designed for TO-220 usage.

  • It has a thermal resistivity of 0.40°C/W and a thermal conductivity of 0.5W/m-K.
  • The product comes in a rectangular shape with an outline of 18.00mm x 12.70mm and a thickness of 0.0060" (0.152mm).
  • It has a bulk packaging and a standard package of 1,000.
  • The product is REACH unaffected and has an ECCN of EAR99.
