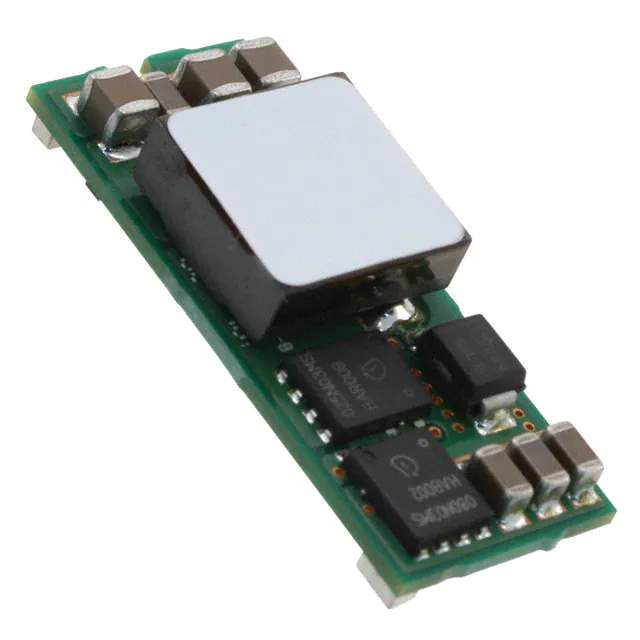

Same model may have multiple batches, images only for reference.

AXA010A0X3-SR

Name: AXA010A0X3-SR
Brand: ABB Embedded Power
SKU: 567345
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AXA010A0X3-SR
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-5.5V 55W
Datasheet	AXA010A0X3-SR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	Austin Lynx™
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10V
Voltage - Input (Max)	14V
Voltage - Output 1	0.8 ~ 5.5V
Current - Output (Max)	10A
Power (Watts)	55 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93%
Mounting Type	Surface Mount
Package / Case	6-SMD Module
Size / Dimension	1.30" L x 0.43" W x 0.33" H (33.0mm x 10.9mm x 8.3mm)
Control Features	Enable, Active High
Standard Package	250 pcs
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	567345-AXA010A0X3-SR
Ultra Librarian 3D Model	Ultra Librarian AXA010A0X3-SR CAD Model

Alternative Products

Description

The AXA010A0X3-SR is a non-isolated PoL (Point of Load) module from ABB Embedded Power.

Series: Austin Lynx™
Application: ITE (Commercial)
Power Rating: 55W
Output Current (Maximum): 10A
Input Voltage: 10V to 14V
Output Voltage: 0.8V to 5.5V
Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO)
Package: Surface Mount, 6-SMD Module
