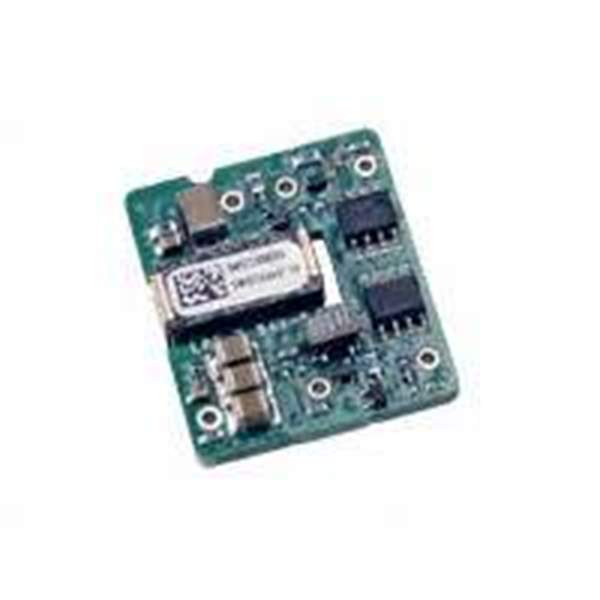

SW003A0A91Z Real Image
Same model may have multiple batches, images only for reference.

SW003A0A91Z

Part No SW003A0A91Z
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description 18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current | DC DC CONVERTER 5V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer ABB Embedded Power
Packaging Bulk
Status Obsolete
Type Isolated Module
Voltage - Input (Minimum) 36V
Voltage - Input (Maximum) 75V
Voltage - Output 1 5V
Current - Output (Maximum) 3A
Power (W) 15W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85.5%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 360
MSL Level 1 (Unlimited)
Win Source Part Number 1262695-SW003A0A91Z
Manufacturer Homepage www.lineagepower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SW003A0A91Z CAD Model

Description

The ABB Embedded Power 1262695-SW003A0A91Z is a bulk-packaged Isolated Module with Through Hole mounting style and Remote On/Off, OCP, OVP, UVLO features.

  • Mounting Style: Through Hole
  • Features: Remote On/Off, OCP, OVP, UVLO
  • Application: ITE (Commercial)
  • Control Features: Enable, Active Low
  • Voltage Isolation: 2.25kV
  • Output Voltage: 5V
  • Efficiency: 85.5%
  • Category: Power Supplies - Board Mount
  • Status: Obsolete
  • Operating Temperature: -40°C to 85°C
  • Package: 6-DIP Module
  • Maximum Output Current: 3A
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 360
  • MSL Level: 1 (Unlimited)
  • Power: 15W
  • Input Voltage: 36V to 75V
  • Dimensions: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
