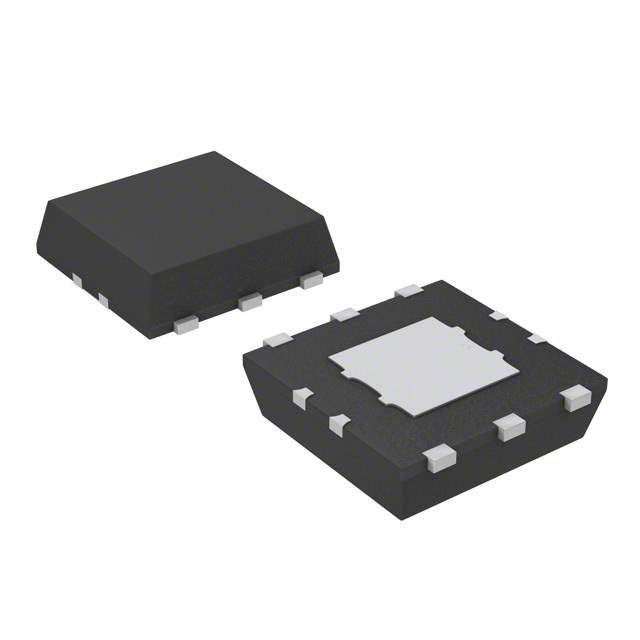

S-1131B52PD-N5LTFG Real Image
Same model may have multiple batches, images only for reference.

S-1131B52PD-N5LTFG

Part No S-1131B52PD-N5LTFG
Manufacturer ABLIC U.S.A. Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 5.2V 300MA 6HSON  /  Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-HSON (A) (2.9x2.8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr ABLIC Inc.
Series S-1131
Package Tape & Reel (TR)
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 5.2V
Voltage Dropout (Max) 0.28V @ 100mA
Current - Output 300mA
Current - Quiescent (Iq) 1 µA
Current - Supply (Max) 65 µA
PSRR 70dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package 6-HSON (A) (2.9x2.8)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1249310-S-1131B52PD-N5LTFG
Ultra Librarian 3D Model Ultra Librarian S-1131B52PD-N5LTFG CAD Model

Description

The S-1131 series linear voltage regulator is designed for applications that require a fixed output voltage of 5.2V.

  • Maximum Output Current: 300mA
  • Maximum Input Voltage: 6.5V
  • Features: enable control function and over current protection
  • PSRR: 70dB @ 1kHz
  • Package: 6-SMD, flat lead exposed pad
  • Format: supplied in tape and reel format
  • Quiescent Current: low quiescent current of 1uA, which makes it ideal for battery-powered applications
  • Voltage Dropout: 0.28V @ 100mA
  • Status: obsolete, and alternative parts are recommended
