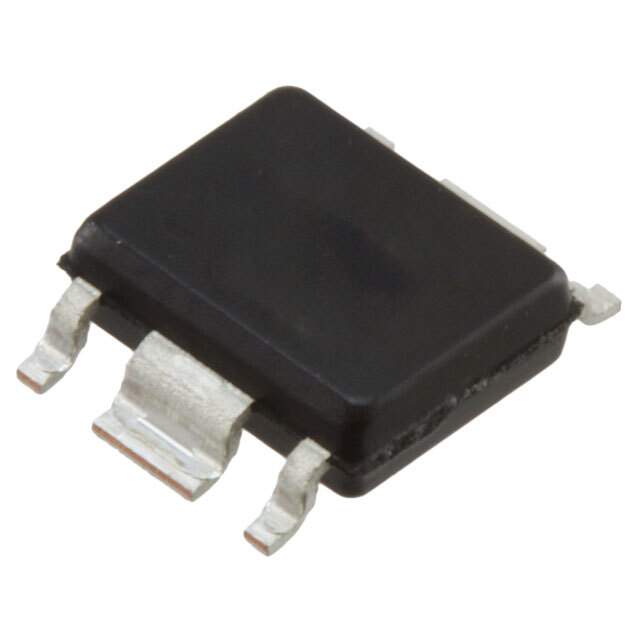

The S-1142D35I-E6T1U is an integrated circuit voltage regulator designed to regulate the output voltage to a fixed value.

• Output Current (Max): 200mA
• Output Configuration: Positive
• Output Voltage (Min/Fixed): 3.5V
• Input Voltage (Max): 50V
• Mounting: SMD (SMT)
• Package: 6-SOIC variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
• Current Supply (Max): 9 µA
• Protection Features: Over Current and Thermal Shutdown
• PSRR: 45dB (100Hz)
• Current Quiescent: 1 µA
• Operating Temperature Range: -40°C to 85°C (TA)
• ECCN: EAR99
• Voltage Dropout: 0.62V @ 200mA
