Same model may have multiple batches, images only for reference.

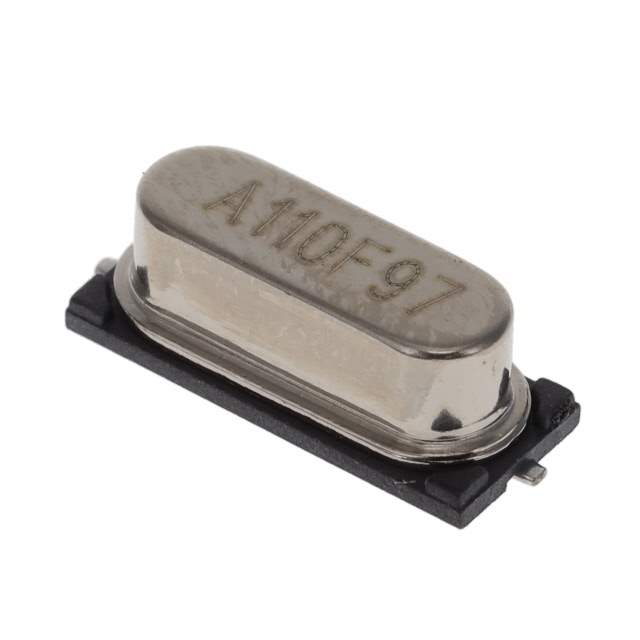

ABLS-11.0592MHZ-20-L-4-Q-T Real Image
Same model may have multiple batches, images only for reference.

ABLS-11.0592MHZ-20-L-4-Q-T

Part No ABLS-11.0592MHZ-20-L-4-Q-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 11.0592MHZ 20PF SMD / 11.0592 MHz ±30ppm Crystal 20pF 50 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS
Package Tape & Reel
Type MHz Crystal
Frequency 11.0592 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-14865-6,535-14865-1,535-14865-2
Standard Package 1,000
Win Source Part Number 1034386-ABLS-11.0592MHZ-20-L-4-Q-T
Ultra Librarian 3D Model Ultra Librarian ABLS-11.0592MHZ-20-L-4-Q-T CAD Model

Description

The ABLS-11.0592MHZ-20-L-4-Q-T is a MHz crystal oscillator manufactured by Abracon LLC.

  • Frequency: 11.0592 MHz
  • Mounting Type: SMD
  • Height: 0.165 inches
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • REACH Affected: Yes
  • HTSUS: 8541.60.0050
