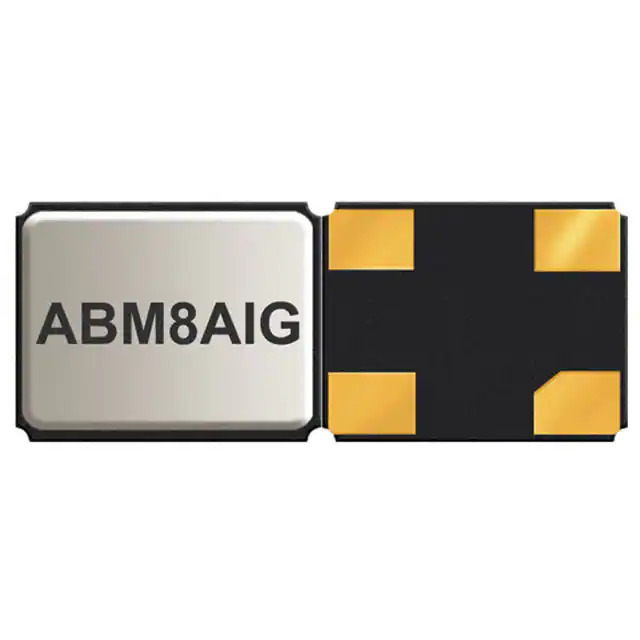

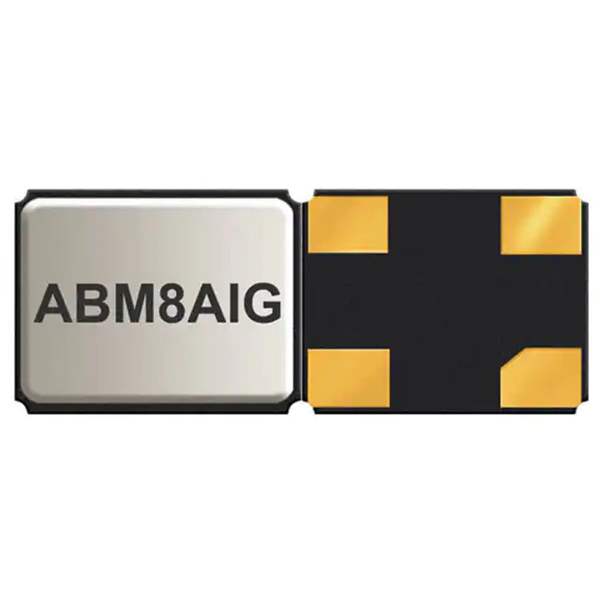

ABM8AIG-20.000MHZ-4-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABM8AIG-20.000MHZ-4-T

Part No ABM8AIG-20.000MHZ-4-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 18PF SMD
Datasheet
ABM8AIG-20.000MHZ-4-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM8AIG
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1377700-ABM8AIG-20.000MHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABM8AIG-20.000MHZ-4-T CAD Model

Description

The ABM8AIG-20.000MHZ-4-T is a 20 MHz crystal from Abracon LLC.

  • Frequency: 20 MHz
  • Mounting Type: Surface Mount
  • Package Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.031" (0.80mm)
  • ESR: 50 Ohms
  • Frequency Stability: ±100ppm
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200: Yes
  • Load Capacitance: 18pF
