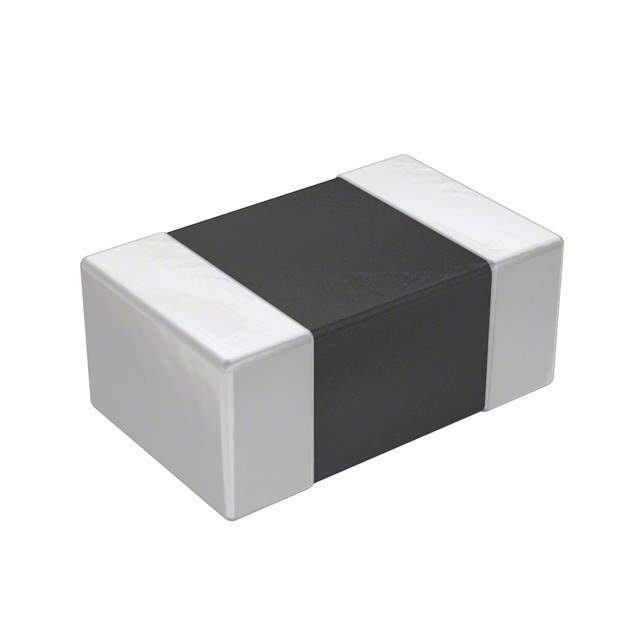

ACML-0805-800-T Real Image
Same model may have multiple batches, images only for reference.

ACML-0805-800-T

Part No ACML-0805-800-T
Manufacturer Abracon LLC
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 0805 1LN / 80 Ohms 1 Ferrite Bead 0805 (2012 Metric) 1A 100mOhm
Datasheet
ACML-0805-800-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Abracon LLC
Series ACML
Package Tape & Reel
Number of Lines 1
Impedance @ Frequency 80 Ohms @ 100 MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 100mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting SMD (SMT)
Height (Max) 0.041" (1.05mm)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-12553-2,535-12553-1,-ACML-0805-800-TCT,535-ACML-0805-800-TTR,-535-12553-1,535-ACML-0805-800-TDKR,-ACML-0805-800-TCT-ND,-ACML-0805-800-TTR-ND,535-12553-2-ND,535-12553-1-ND,-535-12553-2,-ACML-0805-800-TTR,ACML-0805-800-T-ND,535-ACML-0805-800-TCT
Standard Package 4,000
Win Source Part Number 1106633-ACML-0805-800-T
Ultra Librarian 3D Model Ultra Librarian ACML-0805-800-T CAD Model

Description

The 1106633-ACML-0805-800-T from Abracon LLC is a ferrite bead and chip filter that comes in a tape and reel package with 4000 pieces per package.

  • Current Rating: 1A
  • Maximum DC Resistance: 100mOhm
  • Category: Filters
  • Height: 0.041" (1.05mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Impedance: 80 Ohms @ 100 MHz
  • Temperature Range: -55°C to 125°C
