Same model may have multiple batches, images only for reference.

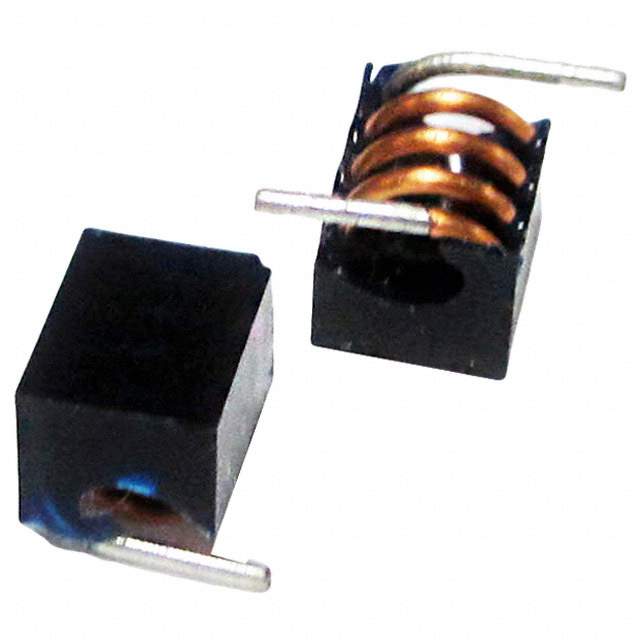

AIAC-0805C-33NK-T Real Image
Same model may have multiple batches, images only for reference.

AIAC-0805C-33NK-T

Part No AIAC-0805C-33NK-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 33NH 500MA 18.7MOHM SM / 33 nH Unshielded Wirewound Inductor 500 mA 18.7mOhm Max Nonstandard
Datasheet
AIAC-0805C-33NK-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIAC-0805C
Package Tape & Reel
Type Wirewound
Material - Core Air
Inductance 33 nH
Tolerance ±10%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 18.7mOhm Max
Q @ Freq 70 @ 300MHz
Frequency - Self Resonant 1.6GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 300 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.112" L x 0.071" W (2.85mm x 1.80mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names AIAC0805C33NKT,535-11959-6,535-11959-2,535-11959-1
Standard Package 4,000
Win Source Part Number 1111814-AIAC-0805C-33NK-T
Ultra Librarian 3D Model Ultra Librarian AIAC-0805C-33NK-T CAD Model

Description

The AIAC-0805C-33NK-T is a wirewound fixed inductor from Abracon LLC. It has an inductance of 33nH and a tolerance of ±10%.

  • Inductance: 33nH
  • Tolerance: ±10%
  • DC Resistance: 18.7mOhm max
  • Current Rating: 500mA
  • Height: 0.083 inches
  • Package: Tape and Reel
  • Package Quantity: 4000
  • ECCN: EAR99
  • REACH Status: Unaffected
  • Manufacturer: Abracon LLC
