Same model may have multiple batches, images only for reference.

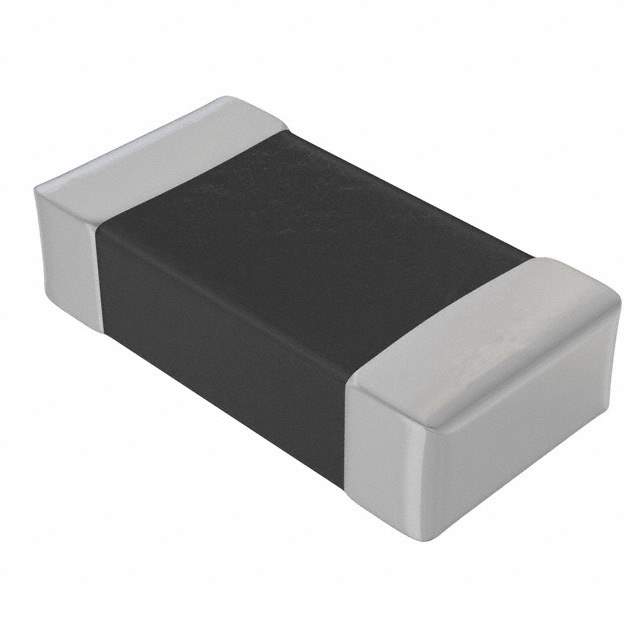

AIML-1206-2R7K-T Real Image
Same model may have multiple batches, images only for reference.

AIML-1206-2R7K-T

Part No AIML-1206-2R7K-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 2.7UH 50MA 550MOHM SMD / 2.7 µH Shielded Multilayer Inductor 50 mA 550mOhm Max 1206 (3216 Metric)
Datasheet
AIML-1206-2R7K-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIML-1206
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Shielded
DC Resistance (DCR) 550mOhm Max
Q @ Freq 50 @ 10MHz
Frequency - Self Resonant 53MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 MHz
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11668-6,535-11668-2,AIML-1206-2R7K-T-ND,AIML12062R7KT,535-11668-1
Standard Package 3,000
Win Source Part Number 959171-AIML-1206-2R7K-T
Ultra Librarian 3D Model Ultra Librarian AIML-1206-2R7K-T CAD Model

Description

The AIML-1206-2R7K-T is a multilayer shielded fixed inductor designed for use in various applications.

  • Inductance: 2.7 µH
  • Tolerance: ±10%
  • Material: ferrite
  • DC Resistance: 550 mOhm max
  • Temperature Range: -55°C to 125°C
  • Height: 0.055" (1.40mm)
  • Packaging: tape and reel
  • Standard Package: 3,000
  • Frequency Self-Resonant: 53MHz
  • Q @ Freq: 50 @ 10MHz
  • Alternatives: LK21252R7K-T, MLF2012A2R7K, LQM21NN2R7K10L, MLF2012A2R7KT000, CS160808-2R7K, and MLF2012A2R7KTD25
