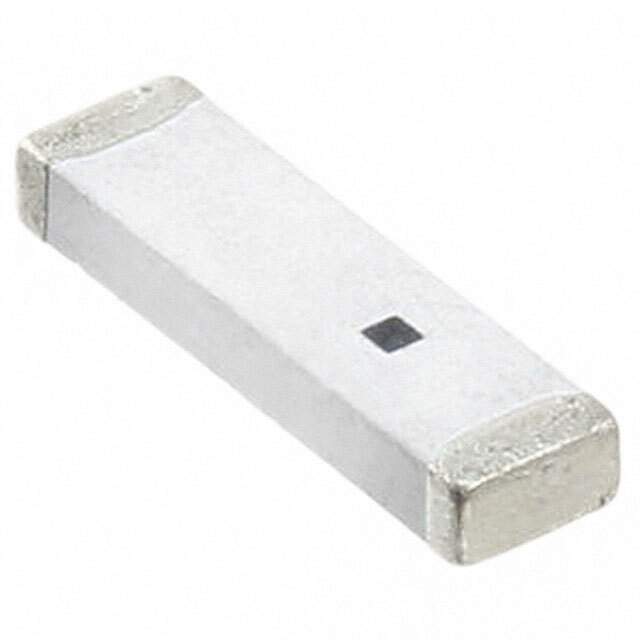

AMCA72-2R470G-S1F-T Real Image
Same model may have multiple batches, images only for reference.

AMCA72-2R470G-S1F-T

Part No AMCA72-2R470G-S1F-T
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / Surface Mount WLAN Antenna (2470MHz)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Abracon LLC
Packaging Reel
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.37GHz ~ 2.57GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 2.7dBi
Power - Max 3W
Termination Solder
Mounting Style SMD
Height (Maximum) 0.039" (1.00mm)
Applications Bluetooth, WLAN
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804890-AMCA72-2R470G-S1F-T
Ultra Librarian 3D Model Ultra Librarian AMCA72-2R470G-S1F-T CAD Model

Description

The AMCA72-2R470G-S1F-T is a chip antenna designed for Bluetooth and WLAN applications.

  • Frequency Range: 2.37GHz to 2.57GHz
  • Gain: 2.7dBi
  • VSWR: 2
  • Mounting: SMD
  • Termination: Solder
  • Maximum Power: 3W
  • Height: 0.039 inches (1.00mm)
  • Manufacturer: Abracon LLC
