Same model may have multiple batches, images only for reference.

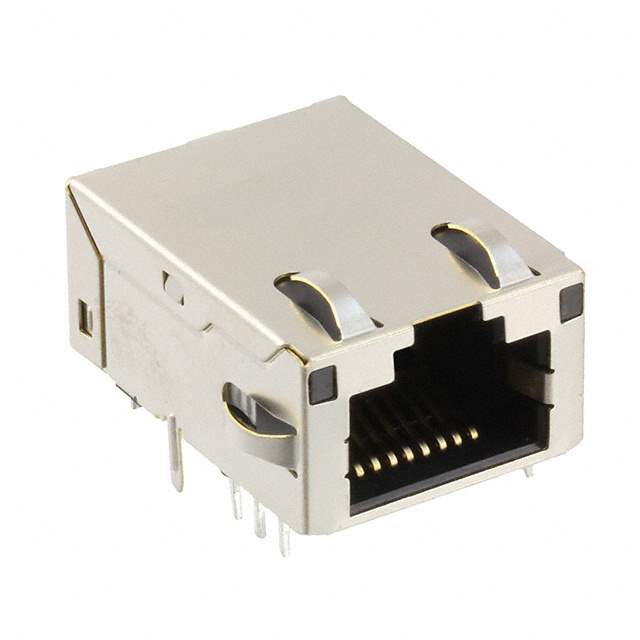

ARJE-0025 Real Image
Same model may have multiple batches, images only for reference.

ARJE-0025

Part No ARJE-0025
Manufacturer Abracon LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Abracon LLC
Series ARJE
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.455" (11.55mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 535-12435
Standard Package 1,200
Win Source Part Number 963195-ARJE-0025
Ultra Librarian 3D Model Ultra Librarian ARJE-0025 CAD Model

Description

The Abracon LLC ARJE-0025 is a modular connector jack with magnetics that comes with board guides.

  • Connector Type: RJ45
  • Row Count: One
  • Termination: Solder
  • Contact Finish: No Contact Finish
  • Contact Finish Thickness: No Contact Finish Thickness
  • Shielded: Yes
  • EMI Finger: Yes
  • Height Above Board: 0.455 inches / 11.55mm
  • LED Color: Green and Orange-Yellow
  • Applications: 10/100/1000 Base-T and AutoMDIX
  • Orientation: 90 degrees
  • Port Count: One
  • Tab Direction: Up
  • Mounting Type: Through-Hole
  • Operating Temperature: 0°C to 70°C
  • Alternative Parts: 1840855-3 and 536642-1
