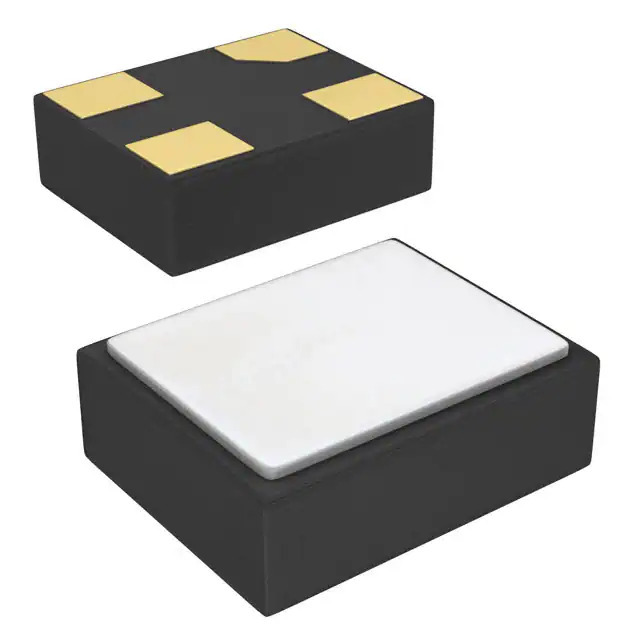

Same model may have multiple batches, images only for reference.
ASA2-25.000MHZ-L-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASA2-25.000MHZ-L-T

Part No ASA2-25.000MHZ-L-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ HCMOS SMD
Datasheet
ASA2-25.000MHZ-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 5mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366445-ASA2-25.000MHZ-L-T
Ultra Librarian 3D Model Ultra Librarian ASA2-25.000MHZ-L-T CAD Model

Description

The ASA2-25.000MHZ-L-T is a 25 MHz XO (Standard) oscillator from Abracon LLC.

  • Voltage Supply: 1.8V
  • Current Supply: 5mA
  • Frequency Stability: ±50ppm
  • Clock Frequency: 108 MHz
  • Mounting Type: Surface Mount
  • Package Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Series: ASA
  • Packaging: Tape & Reel (TR)
  • Enable/Disable Function: Yes
  • Output: HCMOS
  • Applications: Microprocessors, data communication, and audio/video equipment
