Same model may have multiple batches, images only for reference.

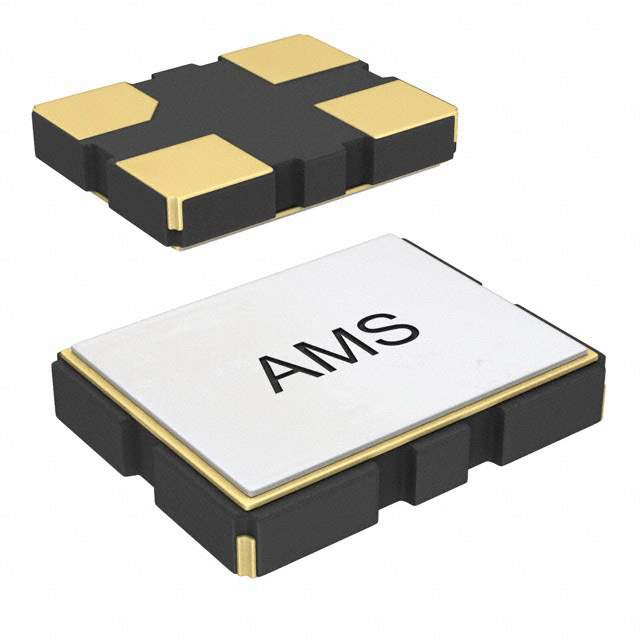

ASE-32.000MHZ-ET Real Image
Same model may have multiple batches, images only for reference.

ASE-32.000MHZ-ET

Part No ASE-32.000MHZ-ET
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 32.0000MHZ CMOS SMD  /  32 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 32 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 13mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ASE-32.000MHZ-E-T,535-9990-6,ASE32000MHZET,535-9990-2,535-9990-1
Standard Package 1,000
Win Source Part Number 1092223-ASE-32.000MHZ-ET
Ultra Librarian 3D Model Ultra Librarian ASE-32.000MHZ-ET CAD Model

Description

The ASE series 32 MHz XO (standard) from Abracon LLC is a CMOS output crystal oscillator with a frequency stability of ±100ppm.

  • Frequency: 32 MHz
  • Frequency Stability: ±100ppm
  • Output: CMOS
  • Current Supply: 13mA
  • Current Supply (Disable): 10µA
  • Voltage Supply: 3.3V
  • Temperature Range: -20°C to 70°C
  • Mounting: 4-SMD, no lead package
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Packaging: Tape and Reel
  • Alternative parts: ASE-30.000MHZ-ET, ASE-33.333MHZ-ET, ECS-2033-320-AU, ASE2-32.000MHZ-ET, ECS-3963-320-AU-TR, and ECS-3953M-320-AU-TR
