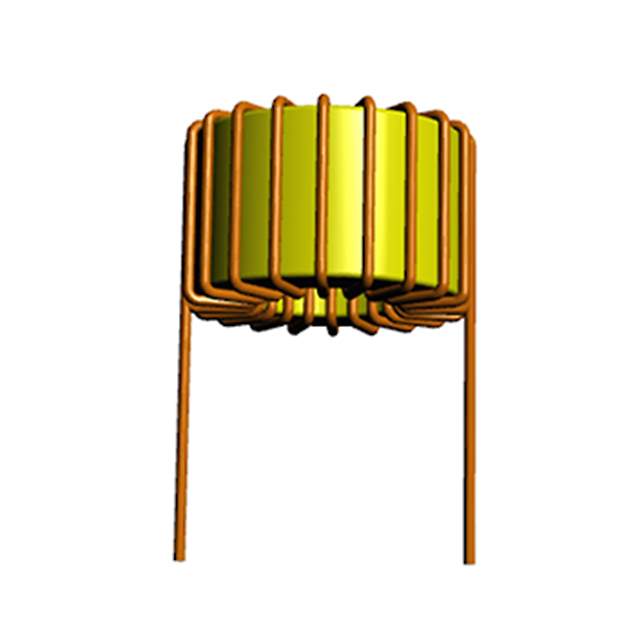

ATCA-01-101M-H Real Image
Same model may have multiple batches, images only for reference.

ATCA-01-101M-H

Part No ATCA-01-101M-H
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 100UH 2A 81 MOHM TH / 100 µH Unshielded Toroidal Inductor 2 A 81mOhm Max Radial, Horizontal (Open)
Datasheet
ATCA-01-101M-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ATCA
Package Tray
Type Toroidal
Material - Core Iron Powder
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Shielding Unshielded
DC Resistance (DCR) 81mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.453" (11.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-13501
Standard Package 150
Win Source Part Number 1022036-ATCA-01-101M-H
Ultra Librarian 3D Model Ultra Librarian ATCA-01-101M-H CAD Model

Description

The ATCA-01-101M-H is a fixed inductor with a toroidal type and an unshielded shielding.

  • Inductor Type: Fixed
  • Core Type: Iron Powder
  • Shielding: Unshielded
  • Inductance: 100 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 81mOhm Max
  • Inductance Frequency - Test: 1 kHz
  • Mounting Type: Through Hole
  • Package/Case: Radial, Horizontal (Open)
  • Operating Temperature: -40°C to 105°C
  • Dimension: 0.709" Dia (18.00mm)
