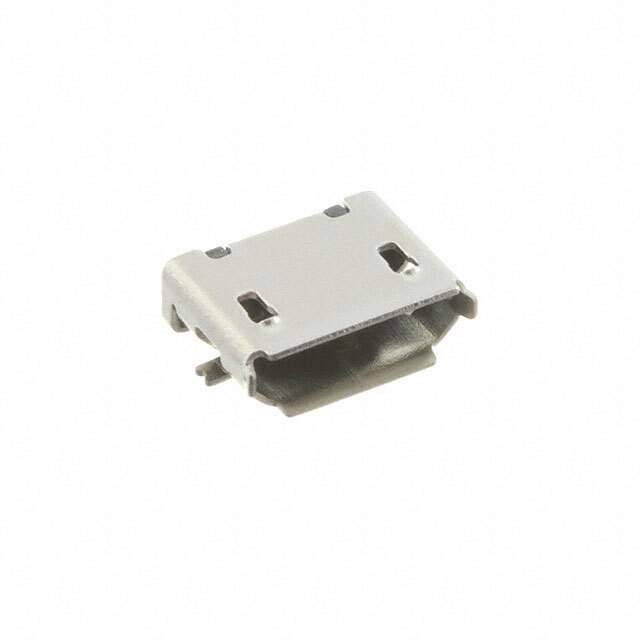

Same model may have multiple batches, images only for reference.

MCR-B-S-RA-TSMT-NP-CS4-T/R

Get a Quote

Part No	MCR-B-S-RA-TSMT-NP-CS4-T/R
Manufacturer	Adam Technologies, Inc.
Catalog	USB, DVI, HDMI Connectors
Description	MICRO USB, TYPE B, RIGHT ANGLE, / USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet	MCR-B-S-RA-TSMT-NP-CS4-T/R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Adam Tech
Series	MCR
Package	Tape & Reel
Connector Type	USB - micro B
Number of Contacts	5
Gender	Receptacle
Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Solder Retention
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	1A
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	MCR-B-S-R
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1342394-MCR-B-S-RA-TSMT-NP-CS4-T/R
Ultra Librarian 3D Model	Ultra Librarian MCR-B-S-RA-TSMT-NP-CS4-T/R CAD Model

Description

The MCR-B-S-RA-TSMT-NP-CS4-T/R from Adam Tech is a high-quality USB connector assembly that is designed to offer superior performance and reliability.

Features: Solder Retention, Shielded Connectors
Operating Temperature: Wide Temperature Range
Current Rating: 1A
Mounting Type: Horizontal
